SELECT A DIAGRAM

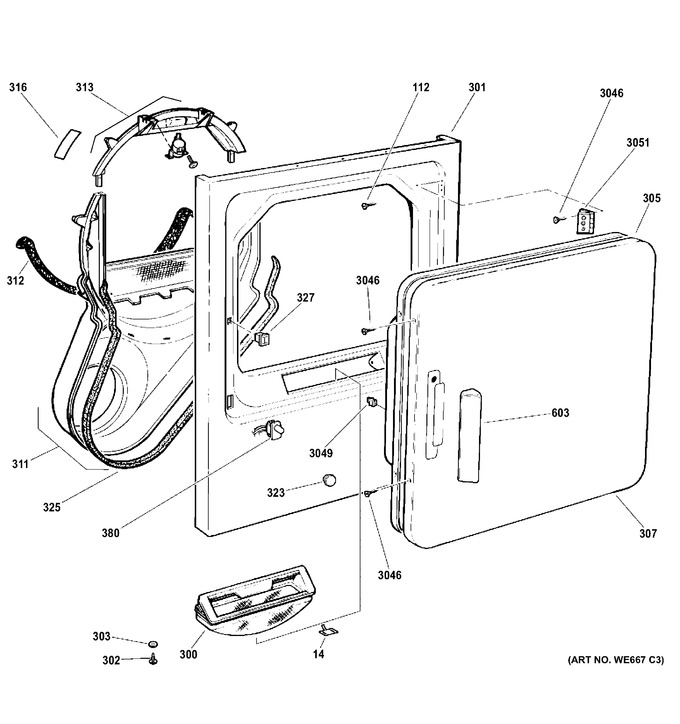

1 - Control Panel & Coin Box Assembly


2 - Front Panel & Door


3 - Upper Cabinet


4 - Lower Cabinet


5 - Drum


6 - Blower & Drive Assembly


7 - Timer Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
112	WR01A00517		Plug Door Rvsbl Wh   (Replaces: WR2X8693)				$ 4.37
300	WG04F00416		Filter Frame W/hole   (Replaces: WE18M29)			Immediately	$ 40.73
301	WE20M531		Panel Front White		Appelez-nous	-
303	WE2M181		Rubber Washer		Appelez-nous	-
307	WW01L01133		Door Panel   (Replaces: WE10M102)				$ 149.43
311	WW02F00592		Air Duct Asm   (Replaces: WE14M92)			Immediately	$ 175.43
312	WE9M30		Felt		Appelez-nous	-
313	WE3M56		Bearing Top		Appelez-nous	-
316	WE1M504		Slide White			Immediately	$ 40.66
316	WE1M415		Bearing-slide Green		Appelez-nous	-
323	WE1M416		Plug Button		Appelez-nous	-
325	WE01X10217		Gasket Seal Hsng Exh		Appelez-nous	-
327	WE1M536		Latch		Appelez-nous	-
380	WE4M415		Door Switch		Appelez-nous	-
603	WE1M1026		Handle Door		Appelez-nous	-
3046	WW02A00097		Screw #8   (Replaces: WE2M196)				$ 3.57
3049	WW02A00004		Strike Door   (Replaces: WE1X1192)			Immediately	$ 3.57
3051	WW02L00028		Hinge   (Replaces: WE1M505)			Immediately	$ 8.93

    View Diagram in Separate Window       Print Part List
