View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Control Panel & Coin Box Assembly
2 - Front Panel & Door
3 - Upper Cabinet
4 - Lower Cabinet

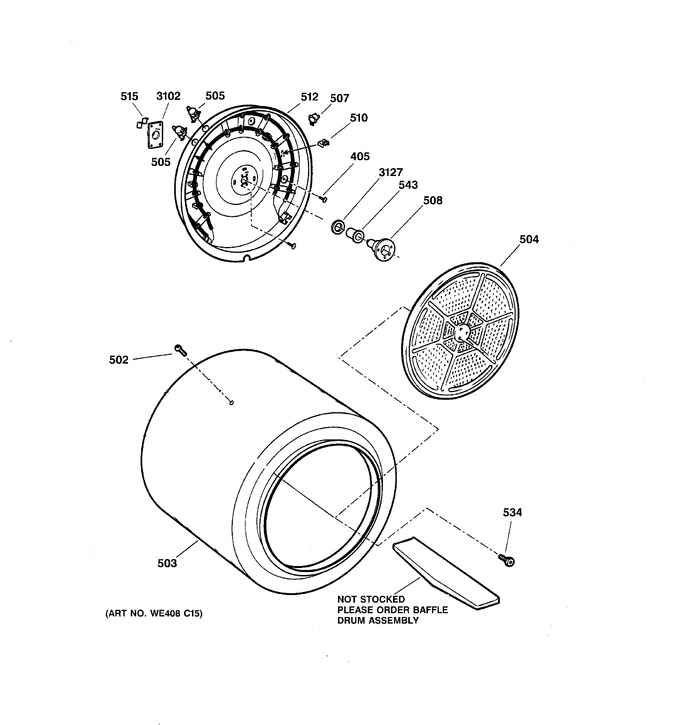

5 - Drum
6 - Blower & Drive Assembly
7 - Timer Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 502 | WW02A00031 | Screw #10 (Replaces: WE2M174) |
|
Immediately | $ 3.57 | ||||
| 504 | WE14M57 | Deflector Heat |
|
- | |||||
| 505 | WE4M160 | T'stat , Safety Left |
|
- | |||||
| 507 | WG04F02270 | T'stat Hi-limit (Replaces: WE4M137) |
|
Immediately | $ 17.14 | ||||
| 508 | WE1M420 | Shim Drum Shaft |
|
- | |||||
| 508 | WE25M40 | Shaft & Bracket Asm (Replaces: WE3X39) |
|
Immediately | $ 157.05 | ||||
| 510 | WG04F05016 | Ceramic Insulator (Replaces: WE1M452) |
|
$ 3.64 | |||||
| 512 | WW02A00049 | Heater Asm (Replaces: WE11M23) |
|
Immediately | $ 163.04 | ||||
| 515 | WE1M1015 | Ground Strap Asm |
|
- | |||||
| 534 | WW01A00456 | Screw #10 (Replaces: WE2M163) |
|
Immediately | $ 3.57 | ||||
| 3102 | WG04A00067 | Bearing Retainer (Replaces: WE1M300) |
|
$ 7.33 | |||||
| 3127 | WG04F00001 | O-ring (Replaces: WE1M461) |
|
$ 26.08 |
