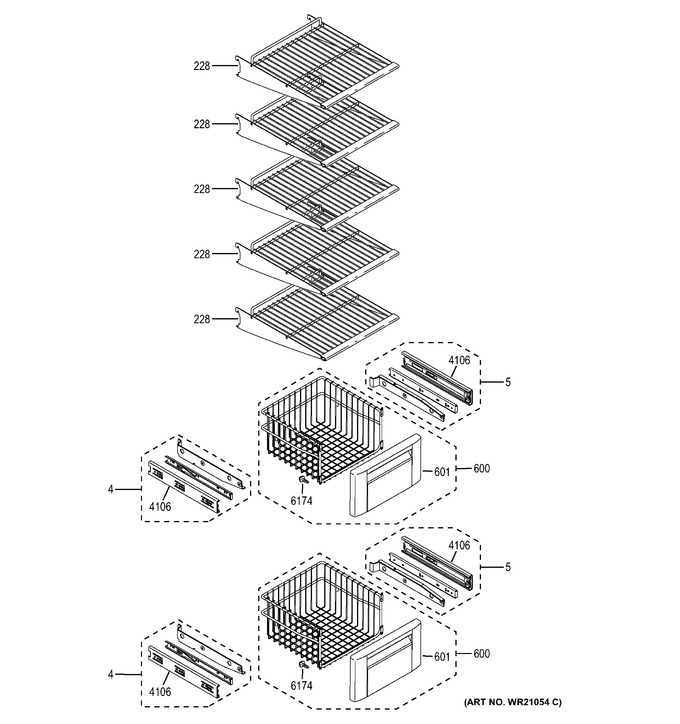

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	70241		Bubble Wrap 1/8 Bub X 12		Appelez-nous	-
4	WR72X10190		Fz Slide Asm Lh		Appelez-nous	-
5	68013		8-32 X 1/2 Ph Thread Cut				$ 479.88
5	WR72X10189		Fz Slide Asm Rh		Appelez-nous	-
228	WR71X10815		Wire Shelf Asm Fz		Appelez-nous	-
600	WR21X10055		Fz Basket Asm		Appelez-nous	-
601	WR71X10415		Front Fz Basket		Appelez-nous	-
4106	WR72X10365		Slide Outer		Appelez-nous	-
6174	WR01X10449		Screw 6x1/2 Pan Phil H/l		Appelez-nous	-
