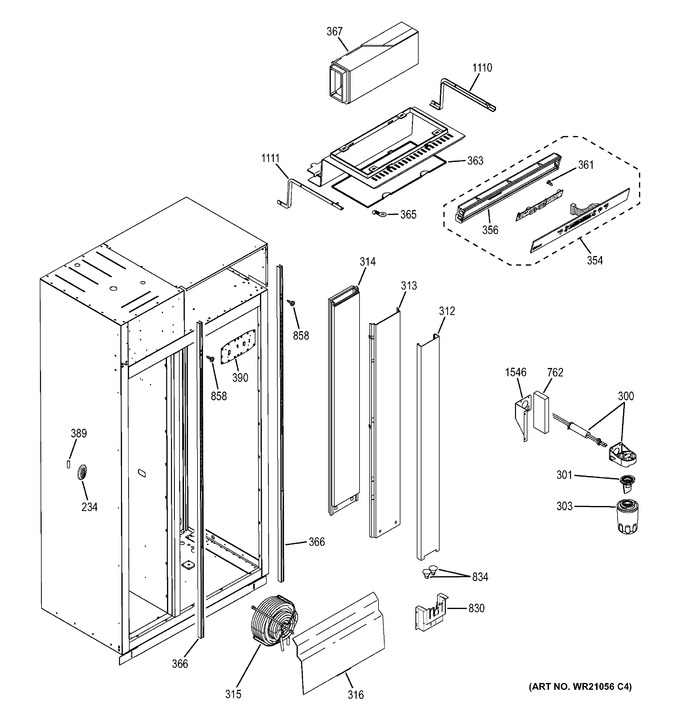

SELECT A DIAGRAM

10 - Case Parts


1 - Freezer Door


2 - Machine Compartment


3 - Fresh Food Door


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Quick Chill


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
234	WR01L04066		Grille Sensor   (Replaces: WR02X10647)				$ 3.97
300	WR02X13046		Water Filter & Head Asm		Appelez-nous	-
301	WG03L10111		Cap Filter Bypass   (Replaces: WR02X11705)			Immediately	$ 19.97
303	PMMWF		Water Filt Ref Cyst   (Replaces: MWF)			Immediately	$ 81.88
312	WR17X12541		Shield Light Column 48		Appelez-nous	-
313	WR17X13034		Airtower Cover		Appelez-nous	-
314	WR02X13602		Foam Airtower Asm		Appelez-nous	-
315	WG03F03757		Water Tank Asm   (Replaces: WR17X12702)				$ 60.18
316	WR02X13142		Cover Water Tank		Appelez-nous	-
354	WR55X10853		Hmi Asm 48 Disp		Appelez-nous	-
356	WR74X10258		Housing Control		Appelez-nous	-
361	WR02X11200		4-40 X 1/4 Ph Sms		Appelez-nous	-
363	WR02X12852		Ceiling Light Shield		Appelez-nous	-
365	WR02X11203		Latch Light Shield		Appelez-nous	-
366	WR17X12524		Track Ff Shelf		Appelez-nous	-
367	WR02X12861		Damper Foam Asm 48		Appelez-nous	-
389	WR01F01730		Sensor Temp Ff   (Replaces: WR55X10025)			Immediately	$ 15.72
390	WR55X11007		Board Led Light Asm		Appelez-nous	-
762	WR14X10296		Foam Strip Front		Appelez-nous	-
830	WR12X10920		Bulb Housing Asm 48ff		Appelez-nous	-
834	WR02X11183		Halogen Bulb Light Colum		Appelez-nous	-
858	WR01X10840		Scr 10-24 F Pnp 1.25s		Appelez-nous	-
1110	WR01X10927		Trim Ceiling Bracket Rh		Appelez-nous	-
1111	WR01X10928		Trim Ceiling Bracket Lh		Appelez-nous	-
1546	WR02X12828		Water Filter Bracket		Appelez-nous	-
