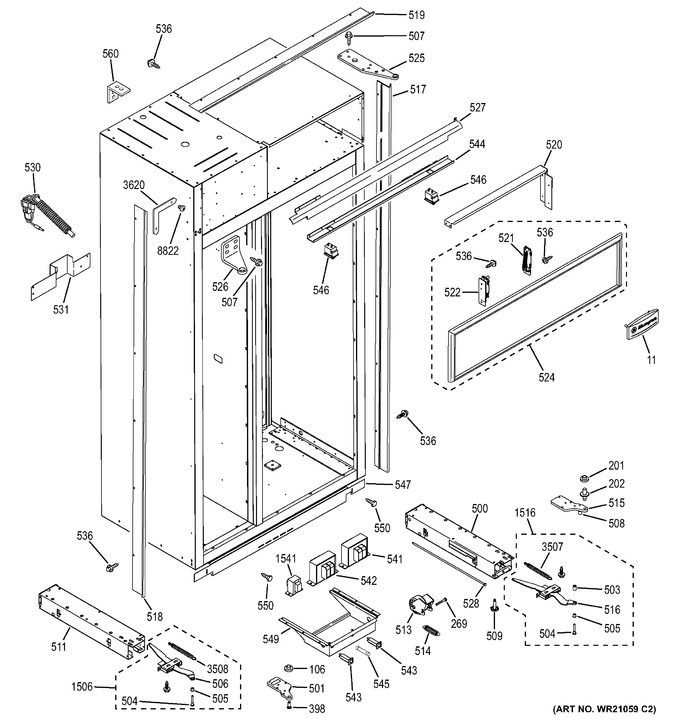

10 - Case Parts


1 - Freezer Door


2 - Machine Compartment


3 - Fresh Food Door


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Quick Chill


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	WS01A00367		Monogram Badge   (Replaces: WB02K10295)				$ 12.40
106	WR01X10297		Fz Bottom Hinge Bushing		Appelez-nous	-
201	WG03A00011		Bushing Hinge Bottom   (Replaces: WR02X10953)				$ 73.58
202	WR01A01444		Lower Ff Adj Hinge Pin   (Replaces: WR13X10239)				$ 21.63
269	WR01X10809		Key Pivot		Appelez-nous	-
398	WR02X12859		Spacer		Appelez-nous	-
500	WR13X10965		Base Channel Rh		Appelez-nous	-
501	WG03L01063		Fz Hinge Sxs Lower Case   (Replaces: WR13X10241)				$ 110.53
503	WR01L08607		Spacer Ff Door Closure   (Replaces: WR02X11231)				$ 21.71
504	WR02X11207		Bolt Shoulder		Appelez-nous	-
505	WR02X10951		Bhng Arm Nylon Ff Dr Cl		Appelez-nous	-
506	WR02X13151		Actuator Arm		Appelez-nous	-
507	WR01X10177		Hinge Screw Door Btm		Appelez-nous	-
508	WR02X11209		Shear Pin		Appelez-nous	-
509	WR02X10479		Leveling Leg		Appelez-nous	-
511	WR13X10966		Base Channel Lh		Appelez-nous	-
513	WG03A00503		Wheel Mobility   (Replaces: WR02X10480)				$ 19.06
514	WG03A00253		Spring Wheel #le022c4   (Replaces: WR02X11233)				$ 15.88
515	WR13X10242		Ff Hinge Sxs Lower Case		Appelez-nous	-
516	WR02X13152		Actuator Arm		Appelez-nous	-
517	WG03L05391		Trim Case Rh Side   (Replaces: WR17X12831)			Immediately	$ 192.66
518	WR17X11181		Case Trim Fz Side		Appelez-nous	-
519	WR17X12915		Trim Case Top Sxs 48		Appelez-nous	-
520	WR13X11004		Mount Hood Grill Hinge		Appelez-nous	-
521	WR13X10910		Hinge Grill		Appelez-nous	-
522	WR13X10911		Hinge Grill		Appelez-nous	-
524	WR74X10346		Grill Asm Pro		Appelez-nous	-
525	WR13X10656		Hinge Ff Upper		Appelez-nous	-
526	WR13X10246		Fz Hinge Sxs Case Upper		Appelez-nous	-
527	WR74X10102		Eyebrow Switch Cover		Appelez-nous	-
528	WR01X10186		Base Shaft		Appelez-nous	-
530	WR49X10094		Fill Tube Freeze Nd		Appelez-nous	-
536	WR01X10484		8-32 X 5/8" Ph Ss Tcs		Appelez-nous	-
541	WG03F00952		Sxs Transformer 140va   (Replaces: WR62X10069)				$ 659.04
542	WG03F00652		Transformer Fz Lights   (Replaces: WR62X10030)				$ 590.97
543	WG03F00293		Fuse, 2 Amp   (Replaces: WR23X10269)				$ 89.11
544	WR17X12549		Plate Switch Sxs		Appelez-nous	-
545	WR01F00842		Fuse   (Replaces: WR55X10766)				$ 9.53
546	WR23X475		Rocker Switch 200-watt		Appelez-nous	-
547	WR49X10303		Toe Kick Asm		Appelez-nous	-
549	WR17X12738		Tray Transformer		Appelez-nous	-
550	WG03A00431		8-32 X 3/8 Phil Ph Ty C   (Replaces: WR01X10370)				$ 4.20
560	WR01X10825		Bracket Anti-tip		Appelez-nous	-
1506	WR02X11208		Link Actuator Fz		Appelez-nous	-
1516	WR02X11211		Link Aucator Ff		Appelez-nous	-
1541	WG02F11798		Transformer   (Replaces: WR62X10070)				$ 165.31
3507	WG03A00042		Spring Closure   (Replaces: WR02X12948)				$ 31.76
3620	WR02X11335		Trim Corner Key		Appelez-nous	-
8822	WR01X10326		#6-32 X 3/16 Mach Scr.		Appelez-nous	-
	WG03F01592		Power Supply Pcb, Monogram				$ 103.11
	WG03F09086		Wg03f03974   (Replaces: WG03F03974)			Immediately	$ 11.12
	WG03F04062		Board Asm Main Control				$ 433.40
	WG02F11798		Transformer   (Replaces: WG03F05782)				$ 165.31
	WG03L00743		Glissiere Ext. Court				$ 61.96
	WG03L05792		Clad Asm Ff				$ 2,466.20
	WR01F01730		Sensor Temp Ff			Immediately	$ 15.72
	WS01A00367		Plaque Marque				$ 12.40
	WG02F00660		Halogen Light				$ 36.53
	WG03A01740		Kit Air Handler Qc				$ 281.21
	WG03F00017		Air Asm				$ 635.32
	WG03F00049		Board Led Light Asm				$ 232.41
	WG02F11798		Led Transformer   (Replaces: WG03F00649)				$ 165.31
	WG03F00652		Transformer Fz				$ 590.97
	WG03F00952		Sxs Transformer, Monogram				$ 659.04
	WG03F07266		Inverter Asm Comp Mount   (Replaces: WG03F01498)			Immediately	$ 668.59
