| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10303988 |
|
Use & Care Guide |
|
Appelez-nous
|
- |
|
|
|
| 1 |
W10477244 |
|
Energy Guide |
|
Appelez-nous
|
- |
|
|
|
| 1 |
W10483315 |
|
Service & Wiring Sheet |
|
Appelez-nous
|
- |
|
|
|
| 1 |
2306424 |
|
Icemaker And Ingredient Care Center Service Sheet |
|
Appelez-nous
|
- |
|
|
|
| 1 |
W10469184 |
|
Main Control Service Sheet |
|
Appelez-nous
|
- |
|
|
|
| 1 |
W10379134 |
|
Installation Instructions |
|
Appelez-nous
|
- |
|
|
|
| 2 |
N/P |
|
Cabinet (not Serviced) |
|
Appelez-nous
|
- |
|
|
|
| 3 |
2318189 |
|
Tray, Filter Drip |
|
|
|
$ 148.73 |
|
|
| 4 |
WPW10138054 |
 |
Assembly, Roller (Replaces: W10138054) |
|
|
|
$ 45.34 |
|
|
| 5 |
W10860448 |
 |
Assembly, Base Support (right Hand) (Replaces: W10138423) |
|
|
Immediately |
$ 383.00 |
|
|
| 5 |
W10860229 |
 |
Assembly, Base Support (left Hand) (Replaces: W10279275) |
|
|
|
$ 381.83 |
|
|
| 6 |
WP2260518B |
 |
Cap, Filter (black) (Replaces: 2260518B) |
|
|
Immediately |
$ 28.26 |
|
|
| 7 |
W10839844 |
|
Mounting Bracket, Grill (Replaces: 2307640) |
|
|
|
$ 43.26 |
|
|
| 8 |
WP2320509 |
|
Stop, Door (Replaces: 2320509) |
|
|
|
$ 29.95 |
|
|
| 9 |
WPW10121140 |
 |
Housing, Water Filter (Replaces: W10121140) |
|
|
Immediately |
$ 171.96 |
|
|
| 10 |
2307584 |
|
Grommet, Crossover Tube |
|
|
|
$ 23.40 |
|
|
| 11 |
3400525 |
|
Screw |
|
|
|
$ 12.83 |
|
|
| 12 |
EDR3RXD1B |
 |
Filter, Water (Replaces: W10121146) |
|
|
Immediately |
$ 49.99 |
|
|
| 13 |
WP8281164 |
 |
Screw (stainless) (Replaces: 8281164) |
|
|
|
$ 11.33 |
|
|
| 14 |
WP8281227 |
 |
Screw (Replaces: W10189203) |
|
|
|
$ 10.96 |
|
|
| 15 |
2257644 |
 |
Hinge, Top |
|
|
|
$ 177.98 |
|
|
| 16 |
W11755873 |
|
Bracket, Filter (Replaces: W10348782) |
|
|
|
$ 80.33 |
|
|
| 17 |
WP489464 |
 |
Screw (Replaces: W10001250) |
|
|
Immediately |
$ 8.38 |
|
|
| 18 |
WP2004994 |
 |
Lock, Bushing (Replaces: 2004994) |
|
|
Immediately |
$ 8.39 |
|
|
| 19 |
W11500952 |
|
Bushing, Top Hinge (Replaces: W10484913) |
|
|
Immediately |
$ 34.74 |
|
|
| 20 |
W11805224 |
|
Spring, Door Closure (green) (Replaces: 2221242) |
|
Appelez-nous
|
- |
|
|
|
| 21 |
W11769878 |
|
Screw (Replaces: 3400230) |
|
|
|
$ 12.77 |
|
|
| 22 |
WP489236 |
 |
Retaining Ring, Adjustable Bushing (Replaces: 2005008) |
|
|
Immediately |
$ 12.78 |
|
|
| 23 |
2215612 |
|
Cover, Air Duct |
|
Appelez-nous
|
- |
|
|
|
| 24 |
2221096 |
|
Bracket, Switch (left Hand) |
|
|
|
$ 97.86 |
|
|
| 24 |
W10741111 |
|
Bracket, Switch (right Hand) (Replaces: 2221097) |
|
|
|
$ 67.37 |
|
|
| 25 |
W10527053 |
 |
Hinge, Bottom (left Hand) (Replaces: 2006779) |
|
|
|
$ 137.73 |
|
|
| 25 |
WP2006780 |
 |
Hinge, Bottom (right Hand) (Replaces: 2006780) |
|
|
|
$ 299.33 |
|
|
| 26 |
WP2302876 |
 |
Bushing, Adjustable (Replaces: 2302876) |
|
|
Immediately |
$ 90.72 |
|
|
| 27 |
W11721628 |
|
Screw (Replaces: 8533913) |
|
|
Immediately |
$ 14.78 |
|
|
| 28 |
2209026B |
|
Skirt-grille, Bottom (black) |
|
|
|
$ 76.14 |
|
|
| 29 |
W10847927 |
 |
Extension Arm (right Hand) (Replaces: 2266882) |
|
|
|
$ 99.91 |
|
|
| 29 |
W11298172 |
 |
Extension Arm (left Hand) (Replaces: 2266881) |
|
|
Immediately |
$ 87.43 |
|
|
| 30 |
2325186B |
|
Grille Bottom, Front (black) |
|
|
|
$ 84.63 |
|
|
| 31 |
W11177574 |
|
Screw (Replaces: W10004850) |
|
|
|
$ 14.84 |
|
|
| 32 |
WP965173 |
|
Screw (Replaces: 487415) |
|
|
Immediately |
$ 11.87 |
|
|
| 33 |
WP1163283 |
|
Screw (Replaces: 1163283) |
|
|
|
$ 7.55 |
|
|
| 34 |
2006617 |
|
Bracket, Base Support |
|
Appelez-nous
|
- |
|
|
|
| 35 |
2215938 |
|
Cover, Switch |
|
|
|
$ 94.78 |
|
|
| 36 |
WP2316859 |
 |
Bushing, Extension Arm (Replaces: 2316859) |
|
|
Immediately |
$ 54.20 |
|
|
| 37 |
W10167456 |
|
Assembly, Rc Wire |
|
Appelez-nous
|
- |
|
|
|
| 38 |
WP2260503B |
 |
Button-water Filter (black) (Replaces: 2260503B) |
|
|
|
$ 76.42 |
|
|
| 39 |
W11384469 |
 |
Switch, Rocker Arm (refrigerator) (Replaces: 1118894) |
|
|
Immediately |
$ 39.09 |
|
|
| 39 |
W11457217 |
 |
Switch, Rocker Arm, Combination(freezer) (Replaces: 1115373) |
|
|
|
$ 40.09 |
|
|
| 40 |
WP8281163 |
 |
Screw (stainless) (Replaces: 8281163) |
|
|
Immediately |
$ 10.70 |
|
|
| 41 |
WP489464 |
|
Screw (Replaces: W10005050) |
|
|
Immediately |
$ 8.38 |
|
|
| 42 |
WP2300868 |
 |
Connector, Union (Replaces: W10271541) |
|
|
Immediately |
$ 29.05 |
|
|
| 43 |
2006616 |
 |
Bracket, Base Support (left Hand) |
|
|
|
$ 91.53 |
|
|
| 43 |
2006556 |
|
Bracket, Base Support (right Hand) |
|
|
|
$ 37.20 |
|
|
| 44 |
2005032 |
|
Leveler, Adjustable |
|
|
Immediately |
$ 200.07 |
|
|

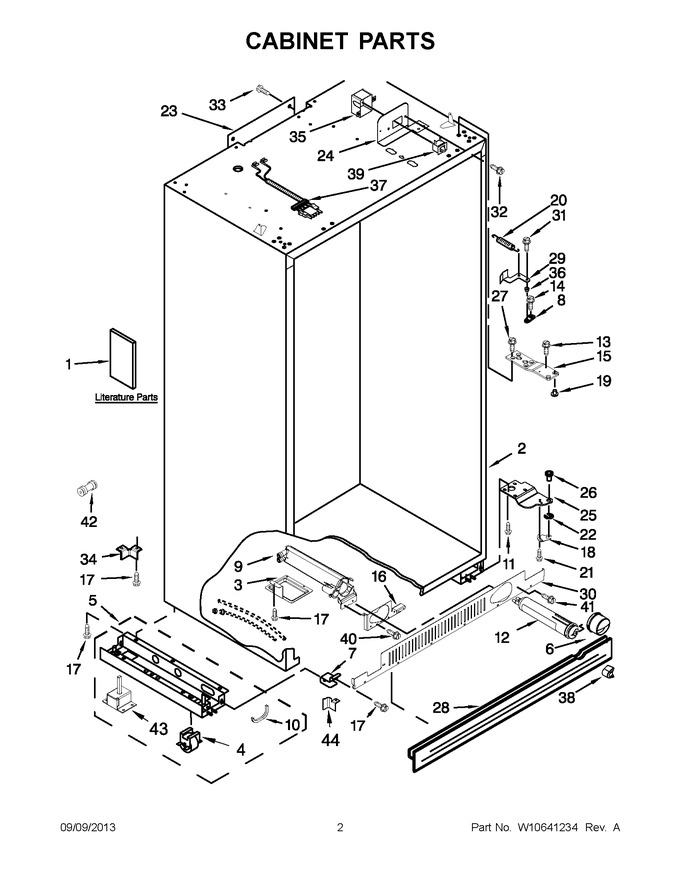

View Diagram in Separate Window
