| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10160981 |
|
Bracket, Air Return Assembly |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W10388653 |
|
Tube, Transition (drier/restrictor) |
|
|
Immediately |
$ 40.48 |
|
|
| 3 |
W11624204 |
|
Screw (Replaces: 486194) |
|
|
|
$ 14.72 |
|
|
| 4 |
W10157752 |
|
Bracket, Heater |
|
Appelez-nous
|
- |
|
|
|
| 5 |
W10306442 |
|
Tube, Oil Trap Suction |
|
Appelez-nous
|
- |
|
|
|
| 6 |
W11623101 |
|
Drain Pan Assembly (Replaces: W10281063) |
|
|
Immediately |
$ 394.02 |
|
|
| 7 |
WPW10309012 |
|
Cover, Wiring (Replaces: W10309012) |
|
|
|
$ 81.52 |
|
|
| 8 |
W11756952 |
|
Cover, Wire Box (Replaces: W10321048) |
|
Appelez-nous
|
- |
|
|
|
| 9 |
W10412485 |
|
Tube, Discharge |
|
|
|
$ 135.81 |
|
|
| 10 |
W10321050 |
|
Shelf, Wiring Cover |
|
Appelez-nous
|
- |
|
|
|
| 11 |
WPW10427993 |
|
Evaporator (Replaces: W10427993) |
|
|
Immediately |
$ 314.25 |
|
|
| 12 |
WPW10140162 |
 |
Heater, Defrost (Replaces: W10140162) |
|
|
Immediately |
$ 170.92 |
|
|
| 13 |
1113048 |
|
Clamp, Heater |
|
Appelez-nous
|
- |
|
|
|
| 14 |
W11715935 |
|
Grommet Air Return (Replaces: W10413009) |
|
|
|
$ 13.58 |
|
|
| 15 |
W10139908 |
|
Cover, Evap Seal |
|
|
|
$ 13.06 |
|
|
| 16 |
W10432308 |
|
Gasket, Evaporator |
|
Appelez-nous
|
- |
|
|
|
| 17 |
WPW10339879 |
 |
Tie, Wire (Replaces: 2155774) |
|
|
|
$ 8.30 |
|
|
| 18 |
W10169509 |
|
Clip, Heat Exchanger |
|
Appelez-nous
|
- |
|
|
|
| 19 |
2320554 |
|
Support, Drain Pan |
|
Appelez-nous
|
- |
|
|
|
| 20 |
2215648 |
|
Dampener |
|
|
|
$ 13.21 |
|
|
| 21 |
WP489069 |
 |
Screw (Replaces: 304392) |
|
|
Immediately |
$ 8.40 |
|
|

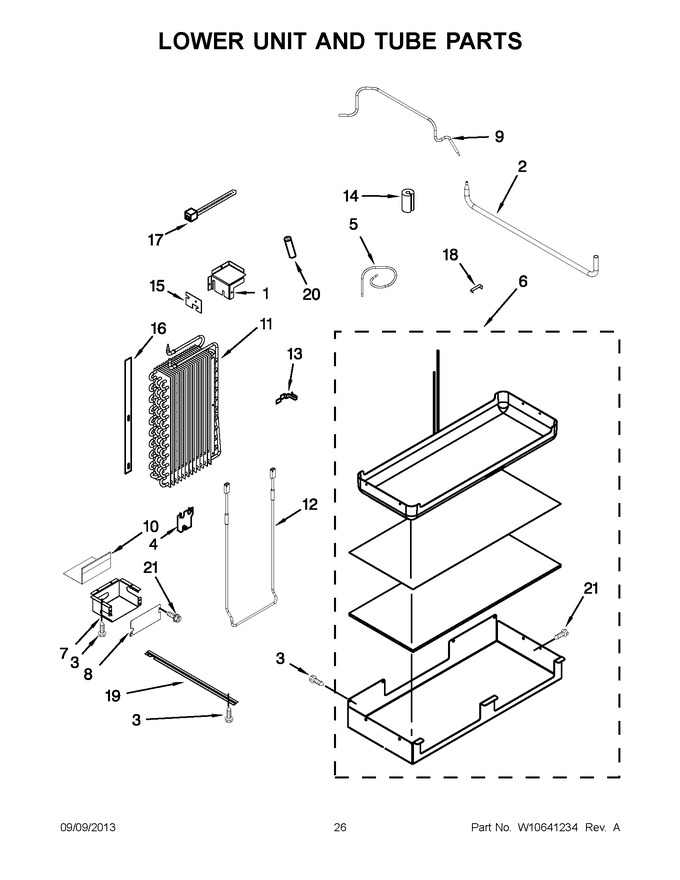

View Diagram in Separate Window
