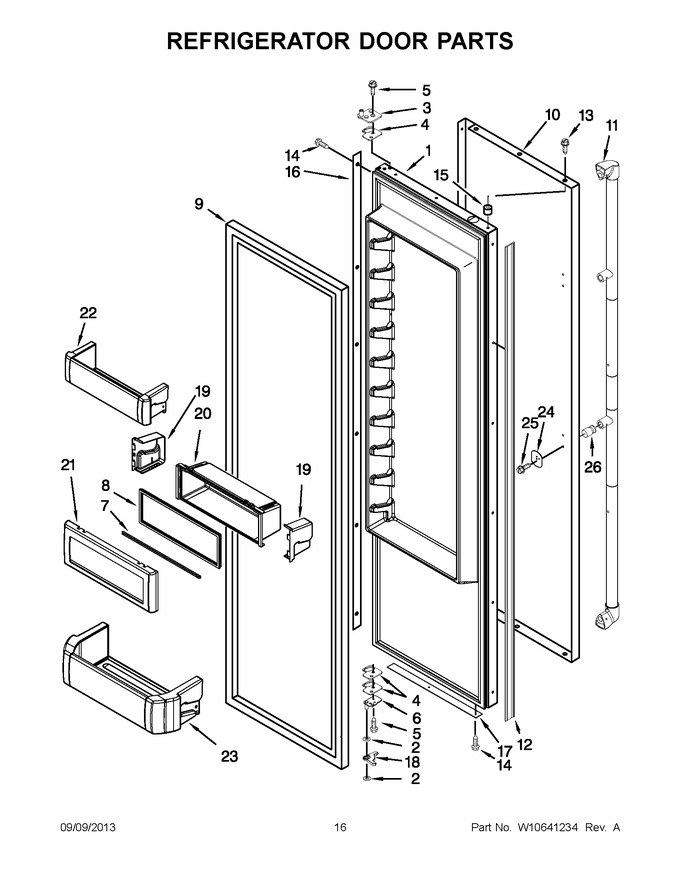

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10193491 |
|
Refrigerator Door Assembly |
|
Appelez-nous
|
- |
|
|
|
| 2 |
WP2006346 |
 |
Washer, Extension Arm (Replaces: 2006346) |
|
|
Immediately |
$ 11.76 |
|
|
| 3 |
W11673500 |
 |
Assembly, Top Hinge (Replaces: W10485980) |
|
|
Immediately |
$ 130.37 |
|
|
| 4 |
W11673500 |
|
Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
|
Immediately |
$ 130.37 |
|
|
| 5 |
W11474472 |
 |
Screw (Replaces: W10162602) |
|
|
Immediately |
$ 8.63 |
|
|
| 6 |
2302878 |
 |
Hinge Assembly, Bottom |
|
|
Immediately |
$ 91.01 |
|
|
| 7 |
W11348580 |
 |
Rail, Lid (Replaces: 2222797) |
|
|
Immediately |
$ 181.10 |
|
|
| 8 |
W11348580 |
|
Gasket, Utility Bin (Replaces: 2222983) |
|
|
Immediately |
$ 181.10 |
|
|
| 9 |
WP2266903 |
 |
Door Gasket, Magnetic (Replaces: 2222812) |
|
|
Immediately |
$ 340.02 |
|
|
| 10 |
W10523734 |
|
Skin, Door |
|
Appelez-nous
|
- |
|
|
|
| 11 |
12859108 |
|
Handle, Door |
|
|
|
$ 284.63 |
|
|
| 12 |
2309060 |
|
Spacer, Handle Side Door |
|
Appelez-nous
|
- |
|
|
|
| 13 |
W10759522 |
 |
Screw (stainless) (Replaces: 488568) |
|
|
|
$ 8.24 |
|
|
| 14 |
WP8281250 |
 |
Screw (stainless) (Replaces: 8281250) |
|
|
|
$ 11.42 |
|
|
| 15 |
2005433 |
|
Spacer, Door Skin Top |
|
|
|
$ 23.33 |
|
|
| 16 |
W10142296 |
|
Spacer, Door |
|
Appelez-nous
|
- |
|
|
|
| 17 |
WP2257343 |
|
Spacer, Door (bottom) (Replaces: 2004935) |
|
|
|
$ 86.72 |
|
|
| 18 |
W11700297 |
|
Cover, Bottom Gap (Replaces: W10482554) |
|
|
Immediately |
$ 38.28 |
|
|
| 19 |
WPW10323172 |
|
Utility Bin Endcap (right Hand) (Replaces: W10323172) |
|
|
|
$ 8.60 |
|
|
| 19 |
WPW10323173 |
|
Utility Bin Endcap (left Hand) (Replaces: W10323173) |
|
|
|
$ 8.60 |
|
|
| 20 |
W11348580 |
|
Bin, Utility Center (Replaces: W10323037) |
|
|
Immediately |
$ 181.10 |
|
|
| 21 |
W11348580 |
|
Door, Utility Bin (Replaces: 2257617) |
|
|
Immediately |
$ 181.10 |
|
|
| 22 |
W11752086 |
|
Bin, Door-shallow (Replaces: W10323600) |
|
|
|
$ 68.19 |
|
|
| 23 |
W10323748 |
|
Shelf, Door (gallon) |
|
|
|
$ 121.78 |
|
|
| 24 |
W10127710 |
|
Plate, Handle Door |
|
|
Immediately |
$ 25.94 |
|
|
| 25 |
WP308544 |
 |
Screw (Replaces: 308544) |
|
|
Immediately |
$ 8.30 |
|
|
| 26 |
WPW10153450 |
|
Stud, Handle Mounting (Replaces: W10153450) |
|
|
|
$ 87.26 |
|
|
View Diagram in Separate Window
Print Part List
