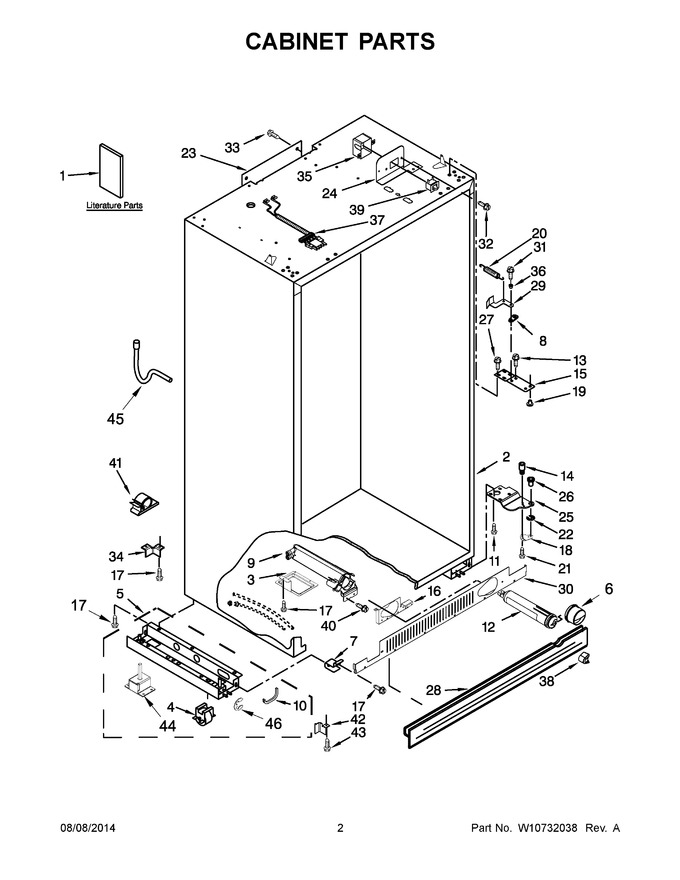

02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner And Air Flow Parts


06 - Refrigerator Shelf Parts


07 - Freezer Shelf Parts


08 - Refrigerator Door Parts


09 - Freezer Door Parts


10 - Top Grille And Unit Cover Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Ice Maker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10681391		Use And Care Guide		Appelez-nous	-
2	N/P		Cabinet (not Serviced)		Appelez-nous	-
3	2318189		Tray, Filter Drip				$ 148.73
4	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 45.34
5	W10860448		Support Base Assembly (right Hand)   (Replaces: W10138423)			Immediately	$ 383.00
6	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260518B)			Immediately	$ 28.26
7	W10839844		Bracket, Grill Mounting   (Replaces: 2307640)				$ 43.26
8	WP2320509		Stop, Door   (Replaces: 2320509)				$ 29.95
9	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 171.96
10	2307584		Grommet, Crossover Tube				$ 23.40
11	3400525		Screw				$ 12.83
12	EDR3RXD1B		Filter, Water   (Replaces: W10121146)			Immediately	$ 49.99
13	WP8281164		Screw (stainless)   (Replaces: 8281164)				$ 11.33
14	WP2005378		Screw, Door Stop   (Replaces: 2005378)				$ 12.02
15	2252292		Hinge, Top (right Hand)				$ 88.79
16	W11755873		Bracket, Filter   (Replaces: W10674648)				$ 80.33
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
18	WP2004994		Lock, Bushing   (Replaces: 2004994)			Immediately	$ 8.39
19	W11500952		Bushing, Top Hinge   (Replaces: W10484913)			Immediately	$ 34.74
20	W11805224		Spring, Door Closure (green)   (Replaces: 2221242)		Appelez-nous	-
21	W11769878		Screw   (Replaces: 3400230)				$ 12.77
22	WP489236		Ring, Bushing Retaining   (Replaces: 2005008)			Immediately	$ 12.78
23	2215612		Cover, Air Duct		Appelez-nous	-
24	W10741111		Bracket, Switch (right Hand)   (Replaces: 2221097)				$ 67.37
25	2309472		Hinge, Bottom (freezer Side)		Appelez-nous	-
26	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 90.72
27	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 14.78
28	WPW10188549		Skirt, Grille (bottom)   (Replaces: W10188549)				$ 144.20
29	W11418227		Extension Arm (right Hand)   (Replaces: 2267192)				$ 119.09
30	W11739147		Grille, Bottom   (Replaces: W10182717)			Immediately	$ 212.42
31	W11177574		Screw   (Replaces: W10485630)				$ 14.84
32	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
33	WP1163283		Screw   (Replaces: 1163283)				$ 7.55
34	2006617		Bracket, Base Support (rear)		Appelez-nous	-
35	2215938		Cover, Switch				$ 94.78
36	WP2316859		Bushing, Extension Arm   (Replaces: 2316859)			Immediately	$ 54.20
37	W10167456		Assembly, Light Switch Wire		Appelez-nous	-
38	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 76.42
39	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 39.09
40	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
41	2004514		Clip		Appelez-nous	-
42	2006616		Bracket, Support Base (front) (left Hand)				$ 91.53
43	WPW10141604		Screw   (Replaces: W10141604)				$ 8.85
44	2005032		Leveler, Adjustable			Immediately	$ 200.07
45	2314064		Tube, Drain				$ 93.88
46	2006841		Ring, Retainer				$ 92.66
15A	2252291		Hinge, Top (left Hand)				$ 79.35
1A	W10703411		Energy Guide		Appelez-nous	-
1B	W10483318		Service & Wiring Sheet		Appelez-nous	-
1C	2306337		Icemaker And Ingredient Care Center Service Sheet		Appelez-nous	-
1D	W10469185		Main Control Service Sheet		Appelez-nous	-
1E	W10555563		Installation Instructions		Appelez-nous	-
24A	2221096		Bracket, Switch (left Hand)				$ 97.86
25A	2309471		Hinge, Bottom (refrigerator Side)				$ 129.90
29A	W11416733		Extension Arm (left Hand)   (Replaces: 2267193)				$ 80.42
39A	W11457217		Switch, Rocker Arm Combination (freezer)   (Replaces: 1115373)				$ 40.09
42A	2006556		Bracket, Support Base (front) (right Hand)				$ 37.20
5A	W10860229		Support Base Assembly (left Hand)   (Replaces: W10279275)				$ 381.83
