Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2313978S Top Grille Assembly (aluminum) Special Order $ 312.20

2 W11735285 Cover, Unit   (Replaces: W10545068) In-Stock Immediately $ 205.97

3 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 8.40

4 2256466 Panel, Unit Back Special Order $ 327.22

5 W10185625 Cover, Unit Front Special Order $ 262.53


    View Diagram in Separate Window     Print Icon   Print Part List

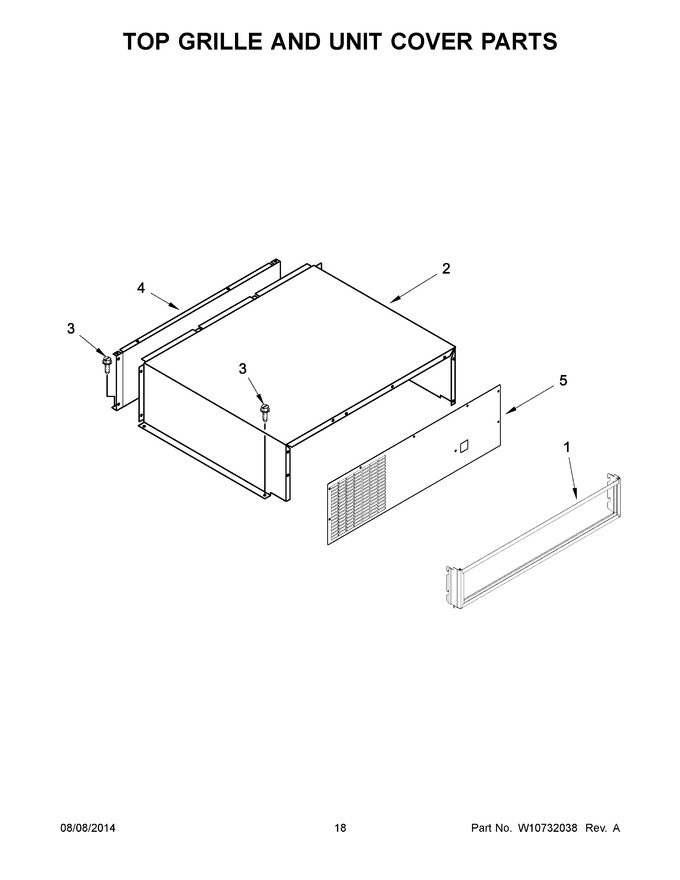

Diagram for KSSO42FTX18
