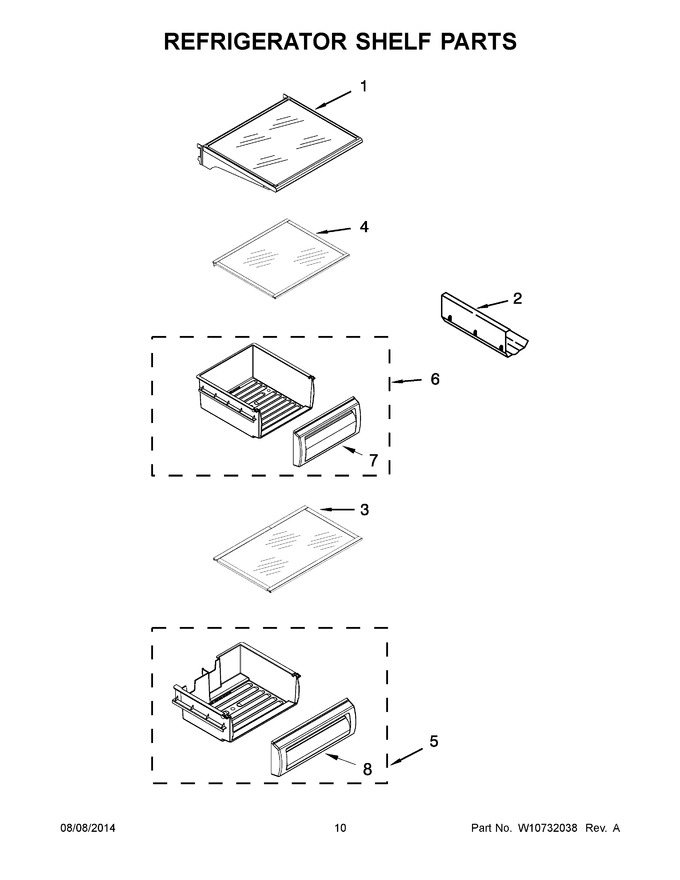

06 - Refrigerator Shelf Parts


07 - Freezer Shelf Parts


08 - Refrigerator Door Parts


09 - Freezer Door Parts


10 - Top Grille And Unit Cover Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Ice Maker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2222592		Assembly, Shelf		Appelez-nous	-
2	W10777924		Rack, Wine   (Replaces: 2179404)				$ 24.78
3	2302842		Assembly, Meat Pan Cover		Appelez-nous	-
4	W10849998		Assembly, Crisper Cover   (Replaces: 2302835)				$ 284.27
5	W10407627		Assembly, Meat Pan				$ 175.77
6	W10407624		Pan, Crisper				$ 177.44
7	2256248		Front, Crisper Pan		Appelez-nous	-
8	WP2256366		Front, Meat Pan   (Replaces: 2256366)				$ 190.12
