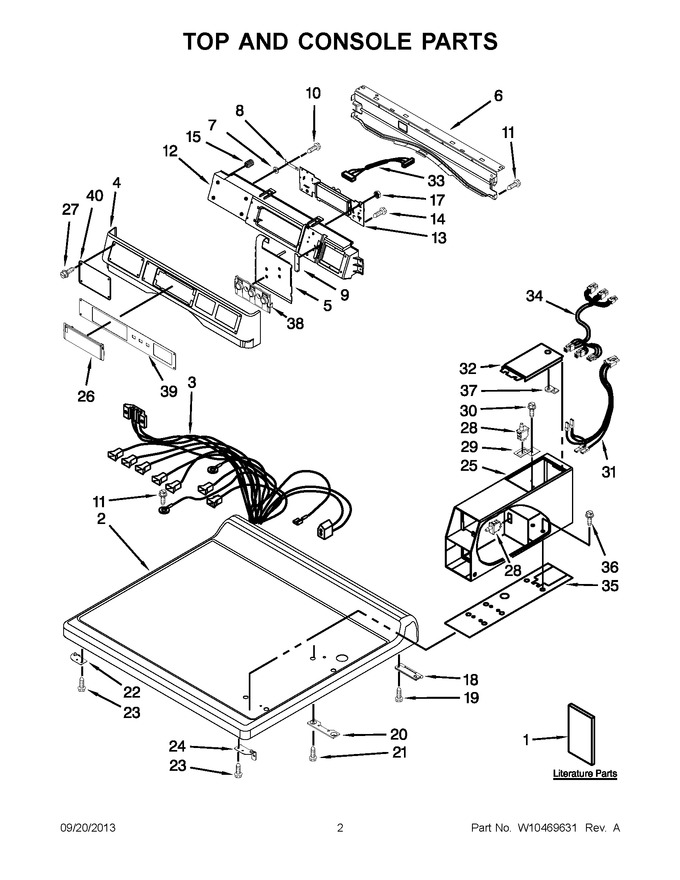

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - W10400668 Burner Assembly Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10184516		Installation Instruction		Appelez-nous	-
1	W10166378		Tech Sheet		Appelez-nous	-
1	W10166312		Wiring Diagram		Appelez-nous	-
2	WPW10137411		Top (white)   (Replaces: W10137411)				$ 410.00
3	W10555112		Harness, Main		Appelez-nous	-
4	W10779120		Console (outer)   (Replaces: W10137459)				$ 138.64
5	WPW10135255		Switch, Membrane & Backer Plate   (Replaces: W10135255)				$ 219.41
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 189.77
7	W10189075		Washer, Brass				$ 19.13
8	W10532923		Ground-jumper, Tab				$ 15.12
9	W10187276		Seal, Console		Appelez-nous	-
10	WP488234		Screw   (Replaces: 488234)				$ 7.08
11	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
12	W11790400		Console (inner)   (Replaces: W10137427)		Appelez-nous	-
13	WPW10166386		User-interface Assembly   (Replaces: W10166386)				$ 233.94
14	489136		Screw				$ 10.80
15	WPW10189313		Insert   (Replaces: W10189313)				$ 9.23
17	WPW10139046		Nut   (Replaces: W10139046)				$ 9.23
18	WP8565018		Hinge & Pin Assembly (white)   (Replaces: 8565018)				$ 115.34
19	WP488627		Screw   (Replaces: 342055)				$ 8.11
20	3347825		Plate, Mounting		Appelez-nous	-
21	W10841059		Screw   (Replaces: 98445)		Appelez-nous	-
22	W10137445		Bracket - Top Panel, Left		Appelez-nous	-
23	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
24	W10137444		Bracket - Top Panel, Right		Appelez-nous	-
25	WPW10171132		Meter Case   (Replaces: W10171132)				$ 247.32
26	W11637765		Cover, Display   (Replaces: W10267645)				$ 69.59
27	WPW10137457		Screw   (Replaces: W10137457)				$ 7.85
28	WPW10131838		Switch, Vault Service Door   (Replaces: W10131838)				$ 25.11
29	W11204533		Bracket, Service Switch   (Replaces: W10133508)		Appelez-nous	-
30	WPW10139210		Screw   (Replaces: W10139210)				$ 8.03
31	W11096090		Wire, Harness Sensor Switch   (Replaces: W10211244)				$ 13.40
32	W11283272		Assembly, Service Door   (Replaces: 3351136)				$ 111.17
33	W10166307		Harness, Communication				$ 41.32
34	W10166308		Harness, Meter Case		Appelez-nous	-
35	W10137448		Cushion, Meter Case		Appelez-nous	-
36	W11715721		Bolt   (Replaces: 3349065)				$ 7.48
37	W11401086		Cam, Commercial Lock   (Replaces: W10156125)				$ 6.17
38	W10803340		Push Button   (Replaces: W10137455)				$ 123.24
39	W10334890		Fascia-console		Appelez-nous	-
40	W10137462		Fascia-dispenser		Appelez-nous	-
