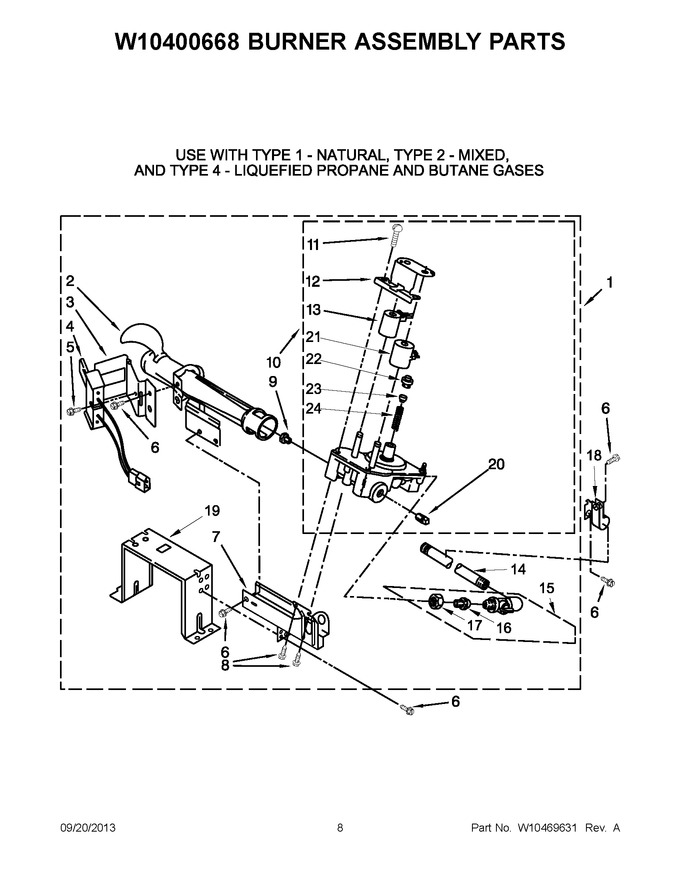

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11676916		Burner Assembly (60 Hz)   (Replaces: W10135231)				$ 284.80
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 188.87
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 27.22
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw   (Replaces: 3393909)				$ 7.88
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
7	3389871		Base, Burner				$ 83.25
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.55
9	WP234868		Orifice, Burner, Type 4 (propane)   (Replaces: 234868)				$ 36.59
9	234870		Orifice, Burner, Type 1 (natural)				$ 129.29
10	WPW10141728		Valve, Gas (60 Hz ? Complete)   (Replaces: W10141728)				$ 359.75
11	694421		Screw, Coil		Appelez-nous	-
12	694538		Bracket, Coil				$ 72.05
13	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 32.85
14	W10110395		Pipe, Gas Supply		Appelez-nous	-
15	697441		Valve, Gas		Appelez-nous	-
16	3393767		Pipe, Tail				$ 144.63
17	233076		Nut, Compression				$ 43.19
18	3387561		Clamp, Pipe		Appelez-nous	-
19	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
20	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
21	279834		Coil, 60 Hz (split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 32.85
22	WP694424		Leak, Limiter   (Replaces: 694424)				$ 36.30
23	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 7.30
24	WP694422		Spring, Regulator   (Replaces: 694422)				$ 25.48
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10402145		Conversion Kit (type 1 And 2) To Type L.p.g.   (Replaces: W10135245)				$ 114.21
