01 - Cover Sheet
02 - Top And Console Parts

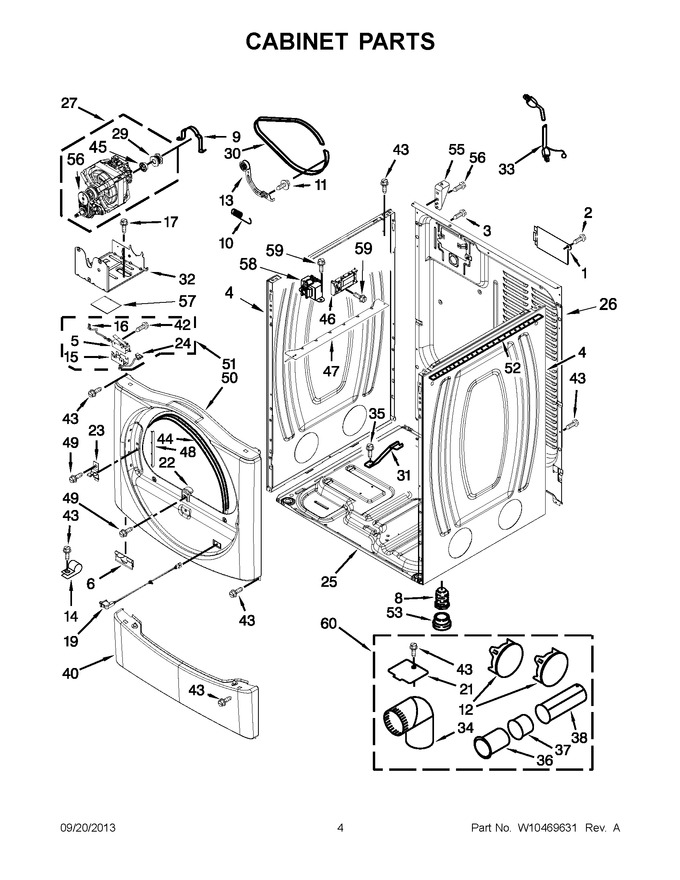

03 - Cabinet Parts
04 - Bulkhead Parts
05 - W10400668 Burner Assembly Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10819767 | Cover, Terminal Block (Replaces: 8317340) |
|
- | |||||
| 2 | WP90767 | Screw (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 3 | W10850756 | Screw (Replaces: 8533974) |
|
$ 8.20 | |||||
| 4 | W10542714 | Panel, Side (white) |
|
$ 350.58 | |||||
| 5 | WP8564010 | Assembly, Switch And Actuator (Replaces: 8564010) |
|
$ 104.11 | |||||
| 6 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 22.17 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | W10470674 | Plug, Multivent (white) (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 13 | WPW10344192 | Assembly, Idler (Replaces: W10344192) |
|
Immediately | $ 94.57 | ||||
| 14 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 15 | 8564011 | Bracket, Switch |
|
$ 19.08 | |||||
| 16 | W10167613 | Wire, Belt Switch |
|
- | |||||
| 17 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 19 | WPW10350910 | Assembly, Door Switch (Replaces: W10350910) |
|
Immediately | $ 87.61 | ||||
| 21 | WPW10354249 | Plate, Cover (Replaces: 8066115) |
|
$ 9.41 | |||||
| 22 | 8580015 | Ramp, Door |
|
$ 88.24 | |||||
| 23 | WP8565122 | Strike, Door (Replaces: 8565122) |
|
Immediately | $ 8.65 | ||||
| 24 | 8539892 | Wire, Motor To Belt Switch |
|
- | |||||
| 25 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 365.36 | |||||
| 26 | 8565059 | Panel, Rear |
|
$ 244.90 | |||||
| 27 | W11234001 | Assembly, Motor 60 Hz. (Replaces: W10396034) |
|
Immediately | $ 433.87 | ||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.00 | ||||
| 31 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 134.62 | |||||
| 33 | W11628810 | Cord, Power (Replaces: 3401401) |
|
$ 101.90 | |||||
| 34 | WPW10416072 | Elbow (Replaces: 49026) |
|
$ 28.16 | |||||
| 35 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 36 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 95.95 | |||||
| 37 | WPW10331278 | Pipe, Exhaust (short) (Replaces: 8563750) |
|
$ 82.90 | |||||
| 38 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 40 | WP8540621 | Toe Panel (white) (Replaces: 8540621) |
|
$ 189.38 | |||||
| 42 | 777849 | Screw (Replaces: W10002600) |
|
$ 7.36 | |||||
| 43 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 46 | WPW10166305 | Control Board (Replaces: W10166305) |
|
$ 193.90 | |||||
| 47 | WP8563727 | Bracket, Control (Replaces: 8563727) |
|
$ 179.69 | |||||
| 48 | 8565043 | Plug, Front Panel |
|
$ 97.29 | |||||
| 49 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 50 | W10874032 | Panel, Front (white) (Replaces: W10549665) |
|
$ 230.45 | |||||
| 51 | W11247665 | Switch, Assembly (Replaces: W10155571) |
|
$ 27.72 | |||||
| 52 | WP8318396A | Seal, Foam (Replaces: 8318396) |
|
$ 39.71 | |||||
| 53 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 8.21 | |||||
| 55 | W10137398 | Stop, Top Panel |
|
- | |||||
| 56 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 36.99 | ||||
| 57 | W11113654 | Motor, Sound Pad (Replaces: W10212660) |
|
$ 23.29 | |||||
| 58 | WPW10131839 | Transformer (Replaces: W10131839) |
|
Immediately | $ 140.23 | ||||
| 59 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 60 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Venting |
|
Immediately | $ 76.65 | ||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
