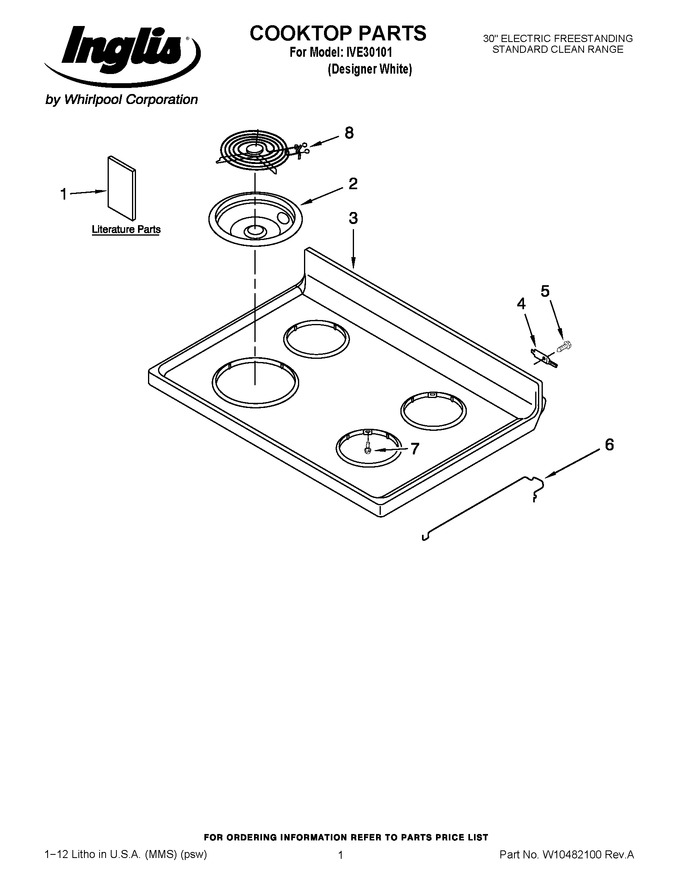

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403812 | Instructions, Installation |
|
- | |||||
| 1 | W10419396 | Owners Manual |
|
- | |||||
| 1 | W10204430 | Sheet, Tech |
|
- | |||||
| 1 | W10204431 | Sheet, Tech French |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 1 | W10065852 | Safer Cooking Frch Template,anti-tip |
|
- | |||||
| 2 | WPW10196406 | Bowl, Drip (6`` Chrome) (Replaces: W10196406) |
|
Immediately | $ 13.39 | ||||
| 2 | WPW10196405 | Bowl, Drip (8`` Chrome) (Replaces: W10196405) |
|
Immediately | $ 17.29 | ||||
| 3 | 3186235 | Cooktop (white) |
|
- | |||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | WP3195812 | Rod, Support (Replaces: 3195812) |
|
Immediately | $ 8.73 | ||||
| 7 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 8 | W11168414 | Element, Surface (6``) (Replaces: W10259870) |
|
Immediately | $ 154.49 | ||||
| 8 | W11161939 | Element, Surface (8``) (Replaces: W10259867) |
|
Immediately | $ 168.63 |
