SELECT A DIAGRAM

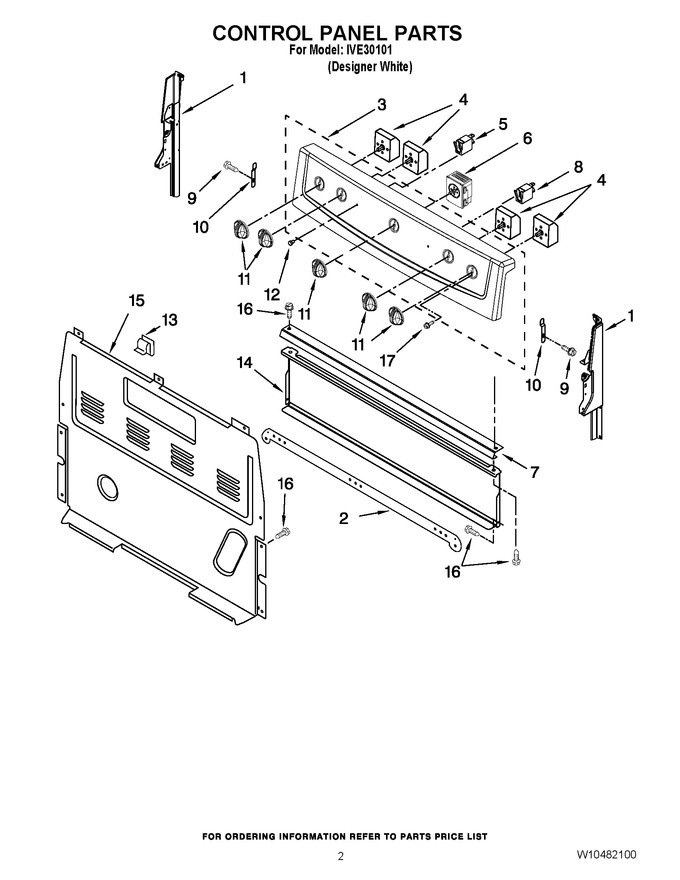

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (left Hand White)   (Replaces: W10184433)				$ 42.45
1	W11219370		Endcap (right Hand White)   (Replaces: W10184434)				$ 60.83
2	9780585		Guard, Wire				$ 35.21
3	W10267433		Panel, Backguard (white)				$ 109.59
4	5500-287		Switch, Infinite (use W/ 6`` Element)   (Replaces: 3148951)			Immediately	$ 52.39
4	5500-287		Switch, Infinite (use W/ 8`` Element)   (Replaces: 3148953)			Immediately	$ 52.39
5	WP8523265		Indicator, 125v   (Replaces: 8523265)			Immediately	$ 86.31
6	WP9762215		Cntrl-elec Roc60   (Replaces: 9762215)			Immediately	$ 365.17
7	W10525121		Brkt-mntg,console   (Replaces: W10182322)				$ 98.85
8	WP8523266		Indicator, 250v   (Replaces: 8523266)				$ 117.50
9	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
10	3196200		Clip, Spring				$ 10.45
11	WPW10203524		Knob (white)   (Replaces: W10203524)				$ 21.82
12	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
13	WP8273564		Clip   (Replaces: 8273564)				$ 12.66
14	W10134247		Shield, Heat			Immediately	$ 358.82
15	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
16	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
17	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55

    View Diagram in Separate Window       Print Part List
