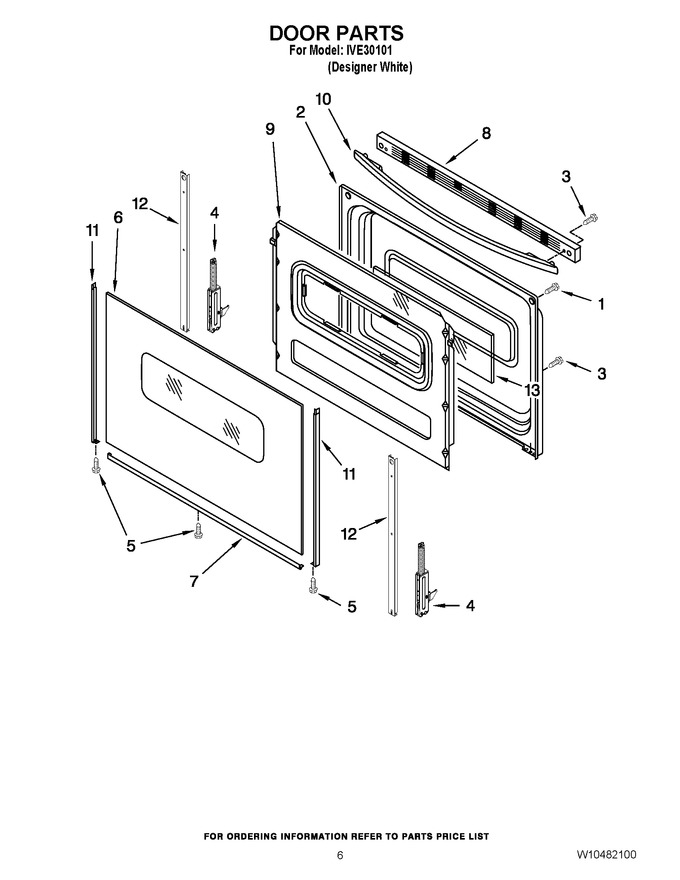

05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 11.03 | ||||
| 2 | 9761340 | Liner |
|
$ 361.12 | |||||
| 3 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 4 | WPW10299227 | Hinge (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 4 | WPW10299225 | Hinge (active) (Replaces: W10299225) |
|
Immediately | $ 52.34 | ||||
| 5 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 6 | WP9762476 | Glass, Outer (Replaces: 9762476) |
|
$ 332.66 | |||||
| 7 | W11594186 | Trim, Lower (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 8 | W10016370 | Trim, Door Top |
|
$ 79.85 | |||||
| 9 | 9761500 | Retainer, Insul |
|
$ 325.62 | |||||
| 10 | W10202219 | Handle, Oven Door |
|
$ 265.19 | |||||
| 11 | WP8523166 | Trim, Door (rh White) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 11 | WP8523172 | Trim, Door (lh White) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 12 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 27.68 | ||||
| 13 | WP9758163 | Glass, Inner (Replaces: 9758163) |
|
$ 162.12 |
