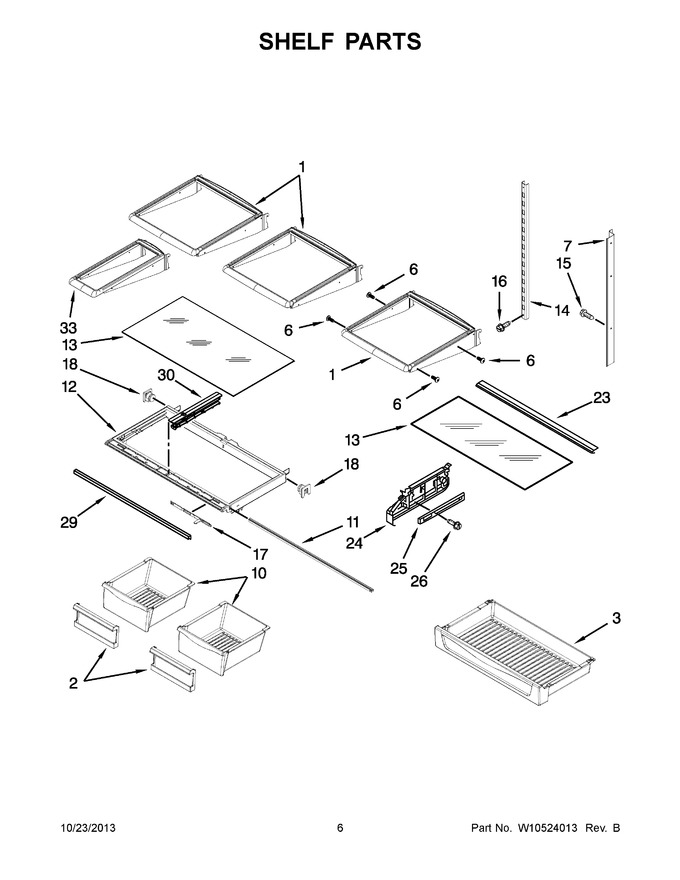

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11402525 | Shelf, Glide Out (Replaces: 12883507) |
|
$ 234.44 | |||||
| 2 | 12727402SP | Handle, Crisper Pan |
|
- | |||||
| 3 | WPW10330534 | Pan, Pantry (Replaces: W10330534) |
|
$ 184.18 | |||||
| 6 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 7 | W10251965 | Ladder, Side (right Hand) |
|
$ 31.08 | |||||
| 7 | W10251968 | Ladder, Side (left Hand) |
|
$ 27.38 | |||||
| 10 | WP67004515 | Pan, Crisper (Replaces: 12804601SP) |
|
Immediately | $ 176.72 | ||||
| 11 | WP12642303WD | Brace, Crisper Cover (Replaces: 12642303WD) |
|
$ 112.26 | |||||
| 12 | WPW10329866 | Frame, Crisper (Replaces: W10329866) |
|
$ 226.44 | |||||
| 13 | WP12204826 | Shelf, Glass (Replaces: 12204826) |
|
$ 254.08 | |||||
| 14 | W10273464 | Ladder, Center |
|
Immediately | $ 30.19 | ||||
| 15 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 16 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 8.38 | |||||
| 17 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 18 | WP13062602 | Support, Crisper Frame (Replaces: 13062602) |
|
$ 84.87 | |||||
| 23 | W11210956 | Trim, Pantry Glass (Replaces: W10528935) |
|
$ 36.20 | |||||
| 24 | W10395615 | Endcap, Pantry (right Hand) |
|
$ 26.62 | |||||
| 24 | W10395616 | Endcap, Pantry (left Hand) |
|
$ 25.43 | |||||
| 25 | W10346888 | Glide, Pantry (right Hand) |
|
- | |||||
| 25 | W10346889 | Glide, Pantry (left Hand) |
|
- | |||||
| 26 | W10185612 | Screw |
|
$ 7.08 | |||||
| 29 | WPW10231345 | Trim, Crisper (Replaces: W10231345) |
|
$ 137.67 | |||||
| 30 | WPW10326469 | Rail, Center Crisper (Replaces: W10326469) |
|
Immediately | $ 33.37 | ||||
| 33 | W11197490 | Shelf, Mini (stationary) (Replaces: 12885501) |
|
$ 242.05 |
