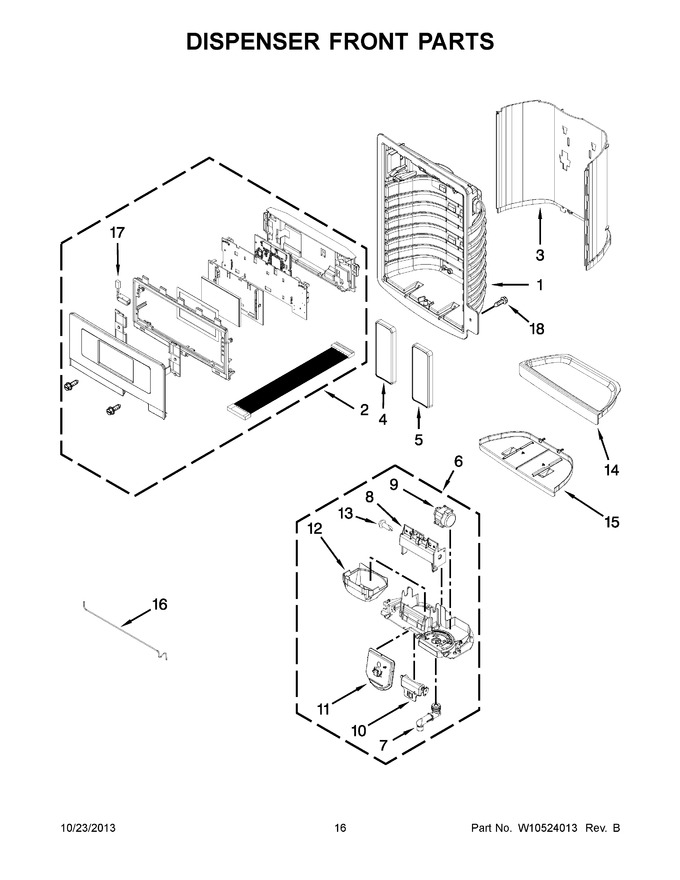

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11184112		Assembly, Ui   (Replaces: W10337911)				$ 406.73
3	W11045978		False, Wall, Dispenser (grey)   (Replaces: W10299897)				$ 90.33
4	WPW10368730		Pad, Ice (grey)   (Replaces: W10334801)			Immediately	$ 319.47
5	WPW10368730		Pad, Water (grey)   (Replaces: W10334825)			Immediately	$ 319.47
6	WPW10353552		Assembly, Seperator   (Replaces: W10353552)				$ 166.29
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
11	WPW10317279		Door-ice   (Replaces: W10317279)				$ 20.52
12	WPW10435760		Guide-ice   (Replaces: W10339578)				$ 23.94
13	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
14	W11192301		Tray, Dispenser (grey)   (Replaces: W10299895)				$ 65.82
15	WPW10267863		Slide Tray, Dispenser (grey)   (Replaces: W10267863)				$ 73.22
16	WPW10511930		Waterline, Door   (Replaces: W10511930)				$ 121.94
17	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
18	WPW10273971		Screw   (Replaces: W10273971)			Immediately	$ 7.55
