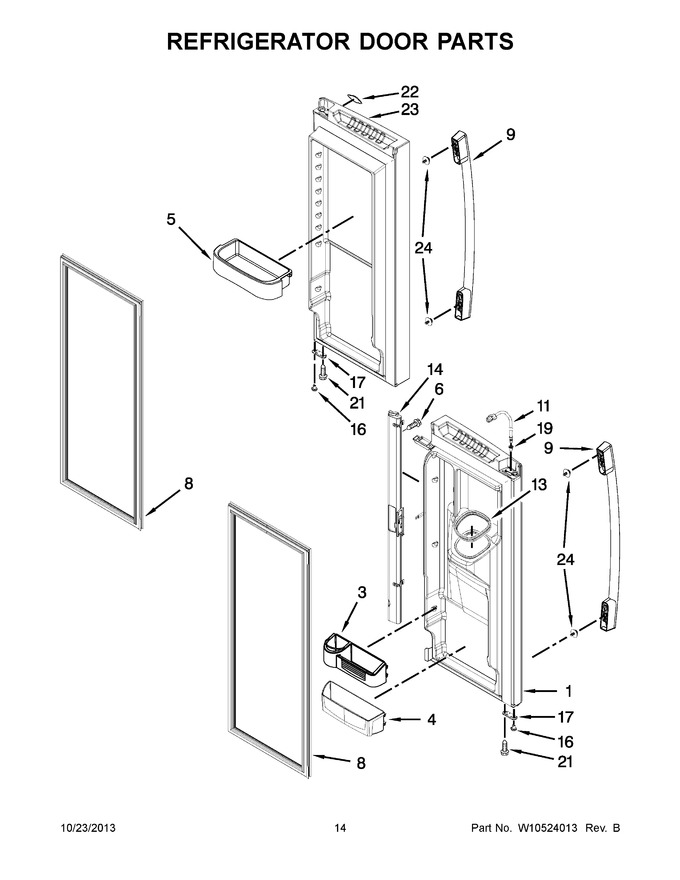

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107315F | Door, Left (sparkle Steel) |
|
- | |||||
| 3 | WPW10323808 | Bucket, Upper (Replaces: W10323808) |
|
Immediately | $ 81.50 | ||||
| 4 | WPW10212139 | Bucket, Small (Replaces: W10212139) |
|
Immediately | $ 78.54 | ||||
| 5 | WPW10224961 | Bucket, Gallon (Replaces: W10224961) |
|
Immediately | $ 95.08 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10830055 | Gasket, Door (grey) (Replaces: W10443238) |
|
Immediately | $ 229.10 | ||||
| 9 | W11351147 | Handle, Door (stainless) (Replaces: W10223019K) |
|
$ 198.22 | |||||
| 11 | WPW10511930 | Waterline, Door (Replaces: W10511930) |
|
$ 121.94 | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 14 | WP12722815AP | Mullion, Door (grey) (Replaces: 12722815AP) |
|
$ 338.01 | |||||
| 16 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 17 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 19 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 21 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 22 | WPW10393265 | Nameplate (grey) (Replaces: W10393265) |
|
Immediately | $ 73.15 | ||||
| 23 | 13107316F | Door, Right (sparkle Steel) |
|
- | |||||
| 24 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 9.65 |
