SELECT A DIAGRAM

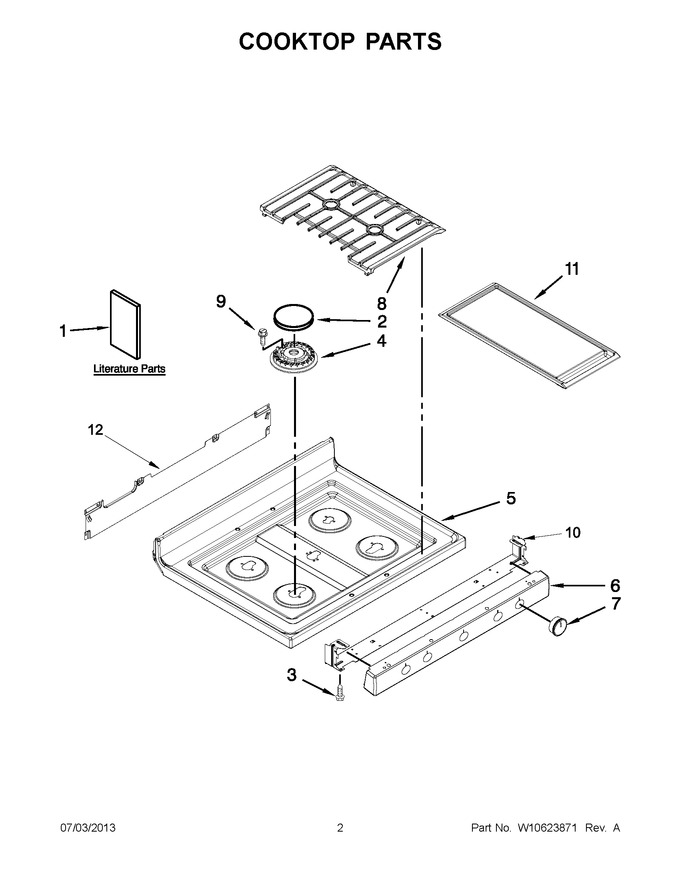

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10392928 | Guide, Use And Care |
|
- | |||||
| 1 | W10538797 | Tech Sheet (english) |
|
- | |||||
| 1 | W10400066 | Guide, Quick Start (english) |
|
- | |||||
| 1 | W10553363 | Instructions, Installation |
|
- | |||||
| 2 | WPW10183374 | Burner Cap Set (black) (Replaces: W10183374) |
|
$ 200.18 | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 4 | WPW10515454 | Burner Head, Semi (9.5 K) (left Rear And Center) (Replaces: W10515454) |
|
$ 115.74 | |||||
| 4 | WPW10515453 | Burner Head, Auxi (5k) (right Rear) (Replaces: W10515453) |
|
$ 99.29 | |||||
| 4 | WPW10515455 | Burner Head, Ultra Rapid (15k) (left Front And Right Front) (Replaces: W10515455) |
|
$ 112.47 | |||||
| 5 | W10366730 | Cooktop (black) |
|
- | |||||
| 6 | W10330066 | Panel, Manifold (stainless) |
|
$ 259.37 | |||||
| 7 | W10766544 | Knob (stainless) (Replaces: W10430807) |
|
Immediately | $ 44.10 | ||||
| 8 | W11394363 | Grate, Set (black) (Replaces: W10447922) |
|
$ 357.58 | |||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 10 | W10534174 | Bracket, Mainfold |
|
- | |||||
| 11 | W10347384 | Griddle |
|
- | |||||
| 12 | W10530070 | Bracket, Rear Gas Cooktop |
|
- |
