View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts

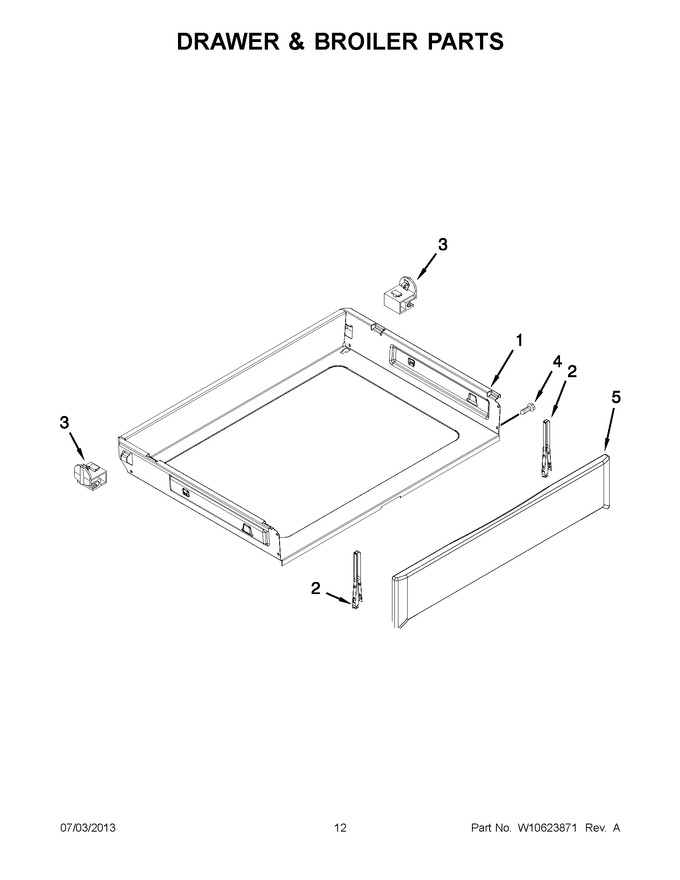

06 - Drawer & Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10813962 | Drawer, Storage (Replaces: W10300032) |
|
Immediately | $ 138.15 | ||||
| 2 | WPW10318026 | Bracket, Mounting (Replaces: W10318026) |
|
$ 39.27 | |||||
| 3 | W10763667 | Glide, Drawer Rear (Replaces: W10317899) |
|
Immediately | $ 107.68 | ||||
| 4 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 5 | WPW10330044 | Panel, Drawer Front (stainless) (Replaces: W10330044) |
|
$ 215.30 |
