View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts

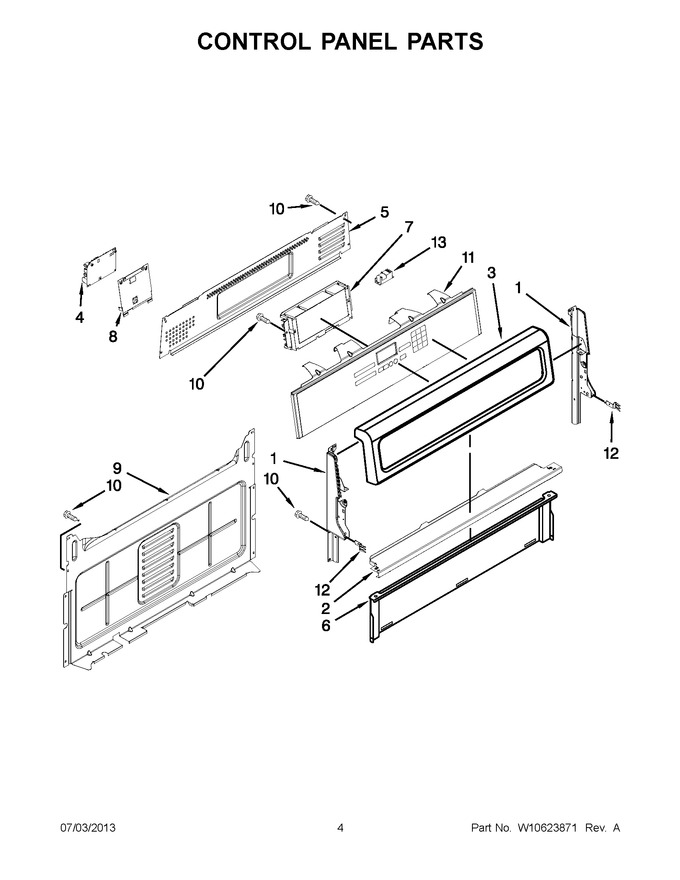

02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219665 | Endcap Black (right Hand) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 1 | W11219664 | Endcap Black (left Hand) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 2 | W10516123 | Bracket, Console Mounting (gas) |
|
- | |||||
| 3 | WPW10318550 | Console, Panel (stainless) (Replaces: W10318550) |
|
$ 273.23 | |||||
| 4 | WPW10511278 | Module-spark (4+2) Dsi (Replaces: W10511278) |
|
Immediately | $ 239.59 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 128.90 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 106.69 | |||||
| 7 | WPW10417051 | Control, Mrc (Replaces: W10417051) |
|
$ 457.15 | |||||
| 8 | W10516577 | Bracket, Mounting |
|
- | |||||
| 9 | W10184251 | Cover, Back |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 11 | W10678665 | Active Overlay Assembly (black) (Replaces: W10347933) |
|
$ 352.33 | |||||
| 12 | 8523412 | Bracket, Rear Cooktop |
|
$ 167.90 | |||||
| 13 | WPW10475149 | Module, Spark (2+0 Filtered) (Replaces: W10475149) |
|
Immediately | $ 179.05 |
