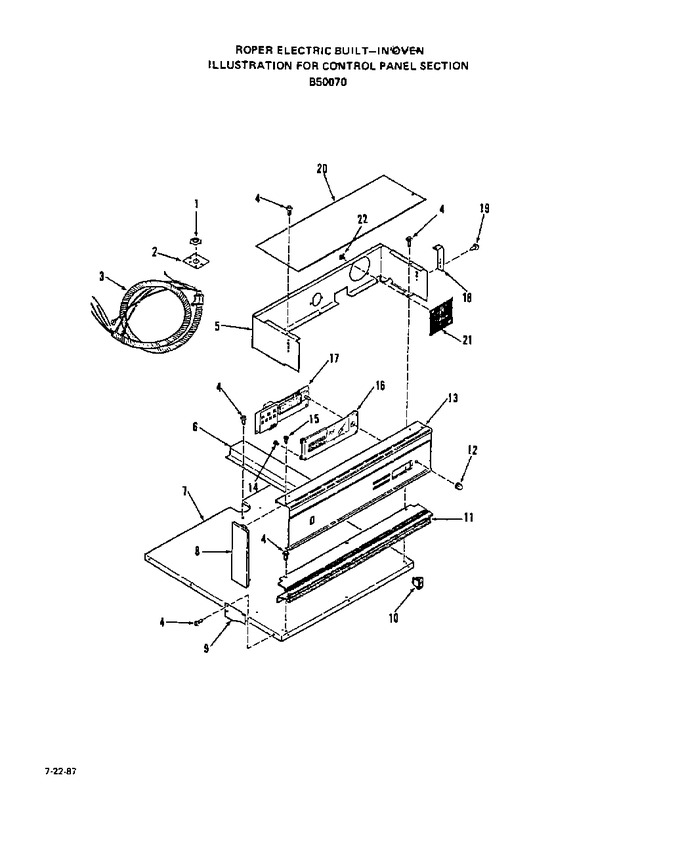

02 - Control Panel


03 - Body


04 - Oven Door, Lit/optional


05 - Wire Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	110340		Nut (for Key 3)		Appelez-nous	-
2	294983		Plate (for Key 3)		Appelez-nous	-
3	336304		Harness Conduit		Appelez-nous	-
4	327320		Screw 10-16x7/16``		Appelez-nous	-
5	337395		Control Housing		Appelez-nous	-
6	336780		Wire Cover		Appelez-nous	-
7	338501		Cabinet Top		Appelez-nous	-
8	336511		End Caps (left)		Appelez-nous	-
8	336512		End Caps (right)		Appelez-nous	-
9	336275		Shield-heat (lt. Or Rt.)		Appelez-nous	-
10	334649		Switch		Appelez-nous	-
11	336244		Trim Control Panel		Appelez-nous	-
12	334961		Knob-clock		Appelez-nous	-
13	336277		Control Panel		Appelez-nous	-
14	78153		Screw		Appelez-nous	-
15	336529		Screw 10-32x1/2``		Appelez-nous	-
16	335646		Clock Lens		Appelez-nous	-
17	336328		Clock		Appelez-nous	-
18	336563		Bracket		Appelez-nous	-
19	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
20	328038		Top Cover		Appelez-nous	-
21	338165		Control Housing Screen		Appelez-nous	-
22	70588		Trim Clip		Appelez-nous	-
