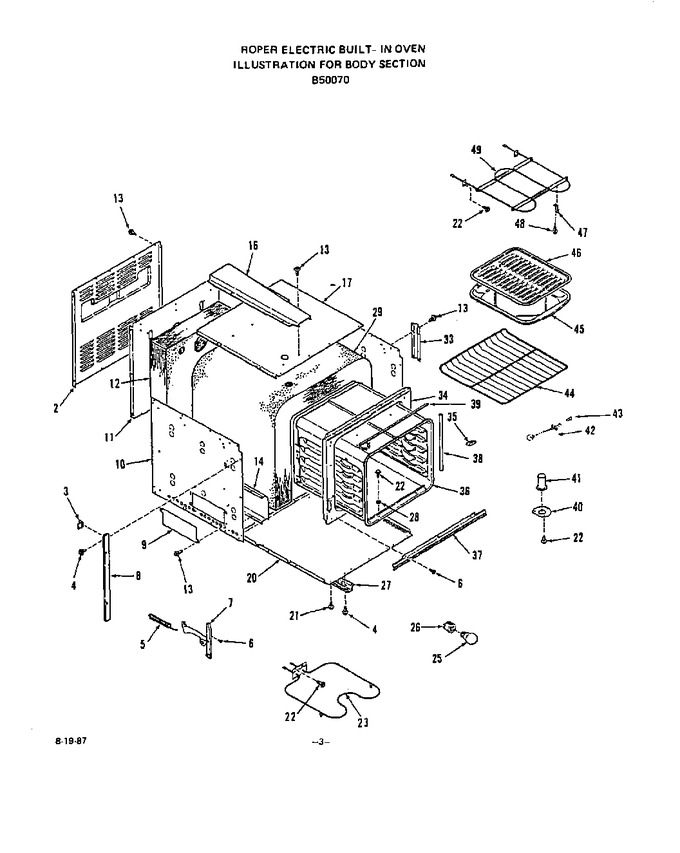

SELECT A DIAGRAM

02 - Control Panel


03 - Body


04 - Oven Door, Lit/optional


05 - Wire Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	328091		Cabinet Back		Appelez-nous	-
3	328077		Spacer (4 Req)		Appelez-nous	-
4	327320		Screw 10-16x7/16``		Appelez-nous	-
5	328962		Spring-oven Door (lt. Or Rt.)		Appelez-nous	-
6	331704		Screw-trim		Appelez-nous	-
7	335600		Hinge (left)		Appelez-nous	-
7	335599		Hinge (right)		Appelez-nous	-
8	336237		Side Trim-lt. Or Rt.		Appelez-nous	-
9	328112		Cover Plate		Appelez-nous	-
10	328087		Cabinet Side-lt Or Rt.		Appelez-nous	-
11	336257		Main Back		Appelez-nous	-
12	336286		Insulation Oven Back And Bottom		Appelez-nous	-
13	327320		Screw 10-16x7/16``		Appelez-nous	-
14	328071		Door Spring Insulation Retainer (lt. Or Rt.)		Appelez-nous	-
16	336779		Vent Box		Appelez-nous	-
17	327963		Insulation Retainer-oven Top		Appelez-nous	-
20	327949		Cabinet Bottom		Appelez-nous	-
21	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
22	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 193.45
23	328113		Bake Element		Appelez-nous	-
25	DA96-01243C		Oven Light Bulb   (Replaces: 111257)				$ 160.00
26	87883		Holder-oven Light Bulb		Appelez-nous	-
27	328042		Bottom Channel-lt. Or Rt.		Appelez-nous	-
28	106462		Washer		Appelez-nous	-
29	328103		Insulation-oven Top And Sides (1 Piece)		Appelez-nous	-
33	324352		Raceway		Appelez-nous	-
34	329344		Front Frame		Appelez-nous	-
35	304835		Cover		Appelez-nous	-
36	336190		Oven Body		Appelez-nous	-
37	336243		Lower Trim		Appelez-nous	-
38	329204		Side Seal-oven Door (rt. Or Lt.)		Appelez-nous	-
39	328809		Top Seal-oven Door		Appelez-nous	-
40	328303		Clamp-oven Vent Tube		Appelez-nous	-
41	329124		Oven Vent Tube		Appelez-nous	-
42	338242		Sensor		Appelez-nous	-
43	336152		Screw		Appelez-nous	-
44	328727		Oven Rack (2 Req)		Appelez-nous	-
45	326300		Broiler Pan		Appelez-nous	-
46	326297		Broiler Pan Grid		Appelez-nous	-
47	324809		Support-broiler Element (2 Req)		Appelez-nous	-
48	69605		Screw 10abx3/8``		Appelez-nous	-
49	328115		Broiler Element		Appelez-nous	-
