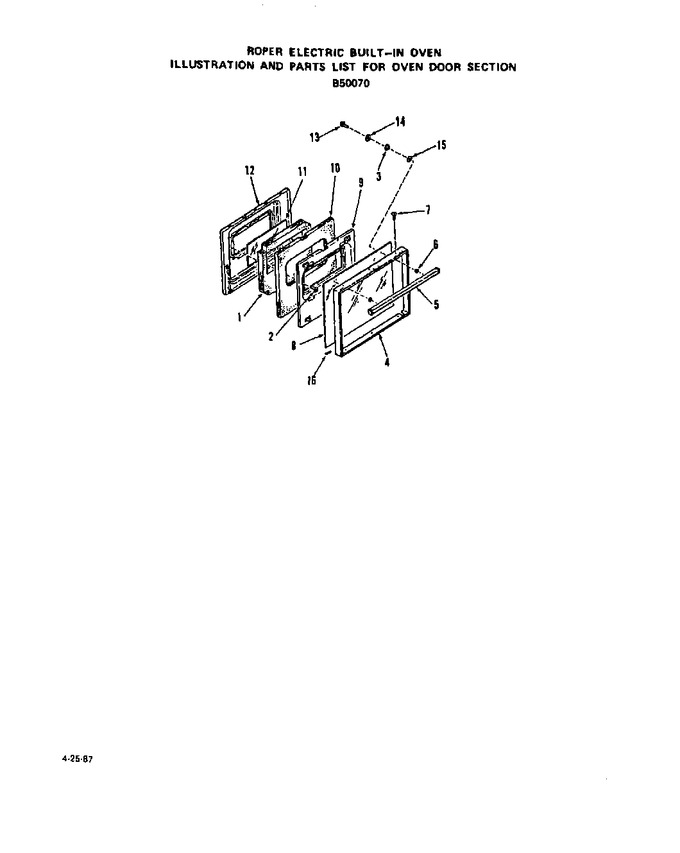

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328107		Insulation		Appelez-nous	-
2	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
3	333015		Spacer-door Glass		Appelez-nous	-
4	336210		Frame-oven Door		Appelez-nous	-
5	336203		Handle-oven Door		Appelez-nous	-
6	DE81-05147A		Spacer, Door Handle   (Replaces: 107158)				$ 228.66
7	329382		Screw 6-20x3/8``		Appelez-nous	-
8	336208		Oven Door Glass-outer		Appelez-nous	-
9	336595		Retainer-oven Door Insulation		Appelez-nous	-
10	WP3147131		Insulation   (Replaces: 329106)				$ 285.56
11	328045		Oven Door Glass-inner		Appelez-nous	-
12	331685		Lining-oven Door		Appelez-nous	-
13	300864		Screw 10-32x3/4``		Appelez-nous	-
14	99279		Washer		Appelez-nous	-
15	333014		Washer-fiber		Appelez-nous	-
16	336323		Use And Care Manual		Appelez-nous	-
16	336324		Installation Guide		Appelez-nous	-
16	112370		Cushion-door Glass		Appelez-nous	-
16	336330		Repair Parts List		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
