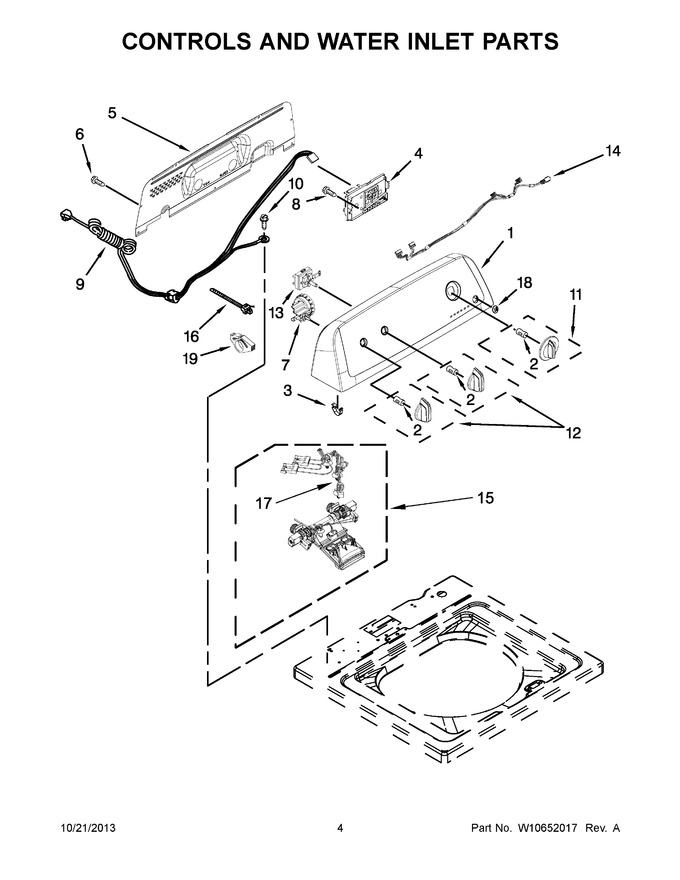

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10420404 | Panel, Console (Replaces: W10420404) |
|
$ 336.16 | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 4 | W10636054 | Control Unit Assembly, Machine & Motor |
|
$ 273.41 | |||||
| 5 | W10409320 | Panel, Console Rear Cover |
|
$ 240.14 | |||||
| 6 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.86 | ||||
| 7 | WPW10450959 | Switch, Water Level (Replaces: W10450959) |
|
$ 184.05 | |||||
| 8 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.19 | ||||
| 9 | WPW10525192 | Cord, Power (Replaces: W10525192) |
|
$ 155.26 | |||||
| 10 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 11 | WPW10711289 | Assembly, Timer Knob (white) (Replaces: W10453946) |
|
Immediately | $ 7.93 | ||||
| 12 | WPW10453947 | Assembly, Control Knob (white) (Replaces: W10453947) |
|
$ 52.15 | |||||
| 13 | WPW10414397 | Switch, Rotary Encoder (3 Position) (Replaces: W10414397) |
|
$ 129.62 | |||||
| 14 | W10475254 | Harness, Upper |
|
$ 146.53 | |||||
| 15 | WPW10683603 | Inlet Assembly, Water (Replaces: W10501149) |
|
Immediately | $ 81.56 | ||||
| 16 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.90 | |||||
| 17 | W10876654 | Harness, Valve (Replaces: W10423127) |
|
$ 185.64 | |||||
| 18 | WPW10251309 | Push Button, Start (Replaces: W10251309) |
|
Immediately | $ 72.38 | ||||
| 19 | WPW10663966 | Clamp, Hose (Replaces: W10348582) |
|
$ 213.58 |
