SELECT A DIAGRAM
New Model Search:

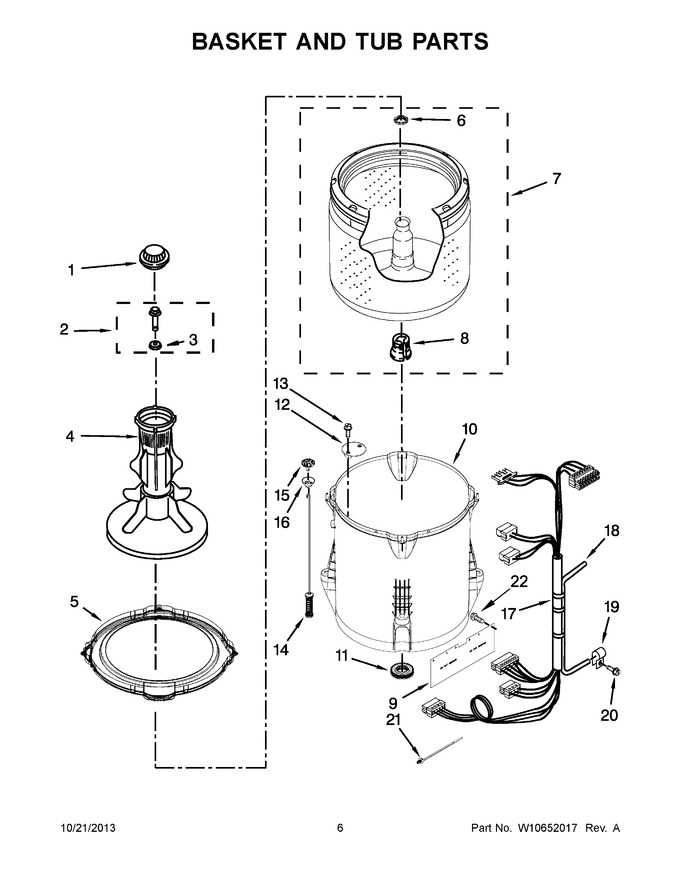

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 3355758) |
|
Immediately | $ 9.00 | ||||
| 2 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 5.24 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 4 | WP63235 | Agitator Assembly (Replaces: 63235) |
|
Immediately | $ 225.64 | ||||
| 5 | WPW10531289 | Ring, Tub (Replaces: W10531289) |
|
Immediately | $ 137.61 | ||||
| 6 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.89 | ||||
| 7 | W10584118 | Basket Assembly |
|
$ 359.54 | |||||
| 8 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 9 | W10339098 | Shield, Splash |
|
$ 24.62 | |||||
| 10 | W10371566 | Tub (includes Tub Seal) (Replaces: W10238320) |
|
$ 339.37 | |||||
| 11 | W10324647 | Seal, Tub (Replaces: W10006371) |
|
Immediately | $ 93.50 | ||||
| 12 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 62.15 | |||||
| 13 | WP8533928 | Screw (stainless) (Replaces: 8533928) |
|
Immediately | $ 7.82 | ||||
| 14 | W10780045 | Damper Assembly, Tub Suspension (set Of 4-includes Items 23 And 24) (Replaces: W10537442) |
|
Immediately | $ 105.99 | ||||
| 15 | W10560146 | Ball, Suspension (set Of 4 - Includes Suspension Bushings) |
|
- | |||||
| 16 | W10256551 | Bushing - Upper Suspension (set Of4 - Includes Suspension Balls) |
|
- | |||||
| 17 | W10647151 | Harness, Lower (includes Pressure Hose & Cable Tie) |
|
- | |||||
| 18 | WP353244 | Hose, Pressure Switch (Replaces: W10639078) |
|
Immediately | $ 59.93 | ||||
| 19 | W10005430 | Clamp, Cable |
|
Immediately | $ 9.08 | ||||
| 20 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.00 | ||||
| 21 | WPW10298887 | Cable Tie (Replaces: W10298887) |
|
$ 7.60 | |||||
| 22 | W10429200 | Retainer, Push-in |
|
- |
