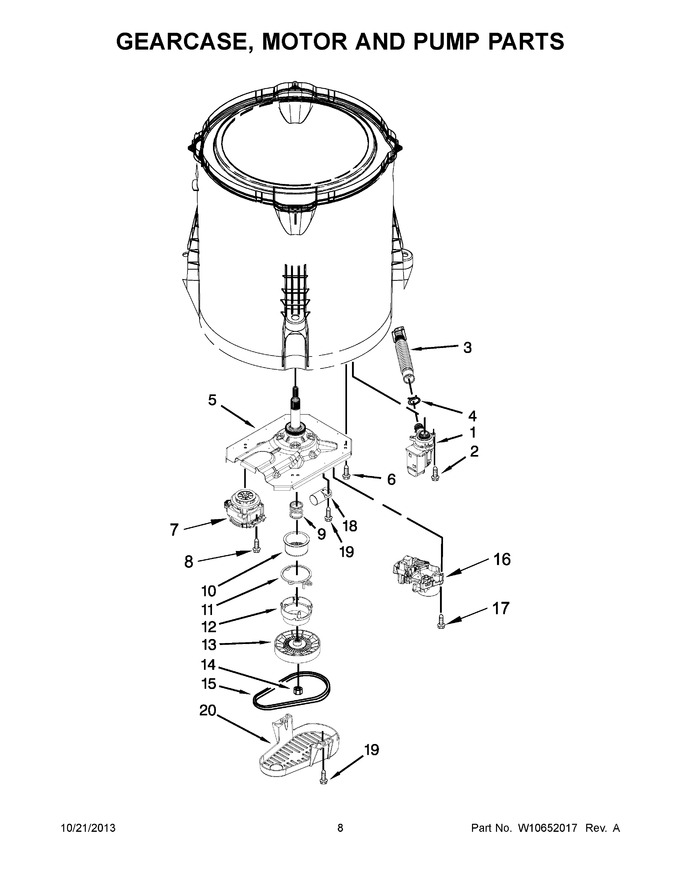

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10276397 | Pump Assembly, Drain (Replaces: W10276397) |
|
Immediately | $ 138.34 | ||||
| 2 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.95 | |||||
| 3 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10215091) |
|
Immediately | $ 34.08 | ||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.39 | ||||
| 5 | W11454741 | Gearcase Assembly (Replaces: W10473144) |
|
Immediately | $ 300.01 | ||||
| 6 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 7.19 | ||||
| 7 | WPW10677715 | Motor, Drive (Replaces: W10416668) |
|
Immediately | $ 319.84 | ||||
| 8 | W11685857 | Screw (Replaces: W10094780) |
|
$ 14.10 | |||||
| 9 | W10721967 | Spring, Splutch (includes Items 10, 11, 12 And 13) (Replaces: W10006382) |
|
Immediately | $ 55.68 | ||||
| 10 | W10721967 | Slider, Splutch (includes Items 9, 11, 12 And 13) (Replaces: W10006352) |
|
Immediately | $ 55.68 | ||||
| 11 | W10721967 | Cam Ring, Splutch (includes Items 9, 10, 12 And 13) (Replaces: W10006353) |
|
Immediately | $ 55.68 | ||||
| 12 | W10721967 | Cam, Splutch (includes Items 9, 10, 11 And 13) (Replaces: W10006354) |
|
Immediately | $ 55.68 | ||||
| 13 | W10721967 | Pulley (Replaces: W10536113) |
|
Immediately | $ 55.68 | ||||
| 14 | W10759923 | Nut, Pulley (Replaces: W10604214) |
|
$ 7.64 | |||||
| 15 | WPW10006384 | Belt, Drive (Replaces: W10006384) |
|
Immediately | $ 38.66 | ||||
| 16 | WPW10006355 | Actuator, Shift (Replaces: W10006355) |
|
Immediately | $ 78.13 | ||||
| 17 | W11596033 | Screw (Replaces: 9741052) |
|
$ 13.55 | |||||
| 18 | W11158830 | Capacitor, Motor Run (Replaces: W10390451) |
|
Immediately | $ 126.66 | ||||
| 19 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.82 | ||||
| 20 | WPW10427633 | Shield, Pulley Cover (Replaces: W10427633) |
|
Immediately | $ 47.41 |
