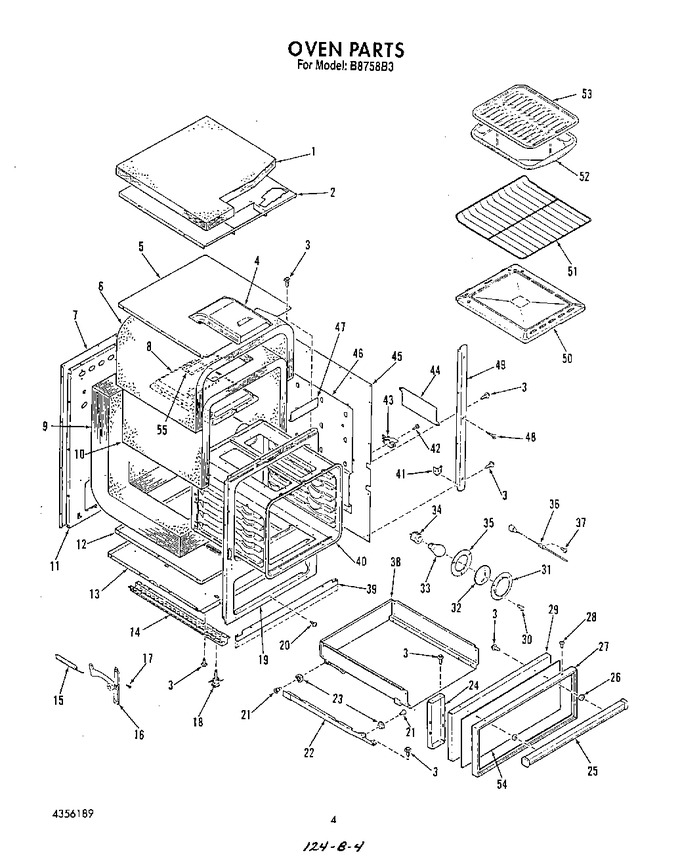

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Oven
04 - Burner
05 - Oven Door , Lit/optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4342868 | Insulation |
|
- | |||||
| 2 | 4337953 | Retainer-oven Top |
|
- | |||||
| 3 | WP681414 | Screw No.10-32x7/16 (Replaces: 4335248) |
|
Immediately | $ 7.62 | ||||
| 4 | 4337903 | Deflector, Flue |
|
- | |||||
| 5 | 4337905 | Retainer-top Insulation |
|
- | |||||
| 6 | 4354958 | Insulation-top & Outer Sides |
|
- | |||||
| 7 | 4337980 | Rear-oven |
|
- | |||||
| 8 | 4337904 | Flue |
|
- | |||||
| 9 | 4354957 | Insulation-back & Bottom |
|
- | |||||
| 10 | 4338184 | Insulation-top & Sides |
|
- | |||||
| 11 | 4338191 | Retainer-rear Insulation |
|
- | |||||
| 12 | 4337901 | Retainer-bottom Insulation |
|
- | |||||
| 13 | 4337902 | Bottom |
|
- | |||||
| 14 | 4338286 | Channel, Bottom |
|
- | |||||
| 15 | 4335885 | Spring, Door (2) |
|
- | |||||
| 16 | 4338032 | Hinge Assembly (right) |
|
- | |||||
| 16 | 4338033 | Hinge Assembly (left) |
|
- | |||||
| 17 | 4336631 | Screw, Trim |
|
- | |||||
| 18 | 4338309 | Leveler Leg |
|
- | |||||
| 19 | 4337900 | Frame, Front |
|
- | |||||
| 20 | 4337797 | Screw, Trim |
|
- | |||||
| 21 | 4323405 | Rivet, Shoulder |
|
- | |||||
| 22 | 4338014 | Guide, Drawer (left) |
|
- | |||||
| 22 | 4338013 | Guide, Drawer (right) |
|
- | |||||
| 23 | 4323378 | Bearing, Roller |
|
- | |||||
| 24 | 4338305 | Liner-lower Panel |
|
- | |||||
| 25 | 4337687 | Handle |
|
- | |||||
| 26 | 4323997 | Spacer |
|
- | |||||
| 27 | 4338012 | Frame-lower Panel |
|
- | |||||
| 28 | 4336048 | Screw, Trim |
|
- | |||||
| 29 | 4338009 | Panel-lower Front |
|
- | |||||
| 30 | WP308685 | Screw No.10 (Replaces: 4323379) |
|
Immediately | $ 7.08 | ||||
| 31 | 4324482 | Retainer, Lens |
|
- | |||||
| 32 | 4324415 | Lens, Oven Lamp |
|
- | |||||
| 33 | 8009 | Lamp, Oven (Replaces: 4338591) |
|
Immediately | $ 16.80 | ||||
| 34 | W10856866 | Holder, Lamp (Replaces: 4343038) |
|
$ 6.80 | |||||
| 35 | 4324481 | Seal, Lamp Lens |
|
- | |||||
| 36 | 4337170 | Sensor |
|
- | |||||
| 37 | 4324445 | Screw |
|
- | |||||
| 38 | 4338184 | Drawer, Storage |
|
- | |||||
| 39 | 4338307 | Trim-lower Front (2 7/8`` Height) |
|
- | |||||
| 39 | 4338297 | Trim-lower Front (1 7/16`` Height) |
|
- | |||||
| 40 | 4337893 | Oven |
|
- | |||||
| 41 | 4338075 | Spacer-front Trim |
|
- | |||||
| 42 | 4335220 | Screw No.6-32x7/8 |
|
- | |||||
| 43 | 4338223 | Switch |
|
- | |||||
| 44 | 4335540 | Plate, Cover |
|
- | |||||
| 45 | 4337954 | Side, Body |
|
- | |||||
| 46 | 4337964 | Retainer-side Insulation |
|
- | |||||
| 47 | 4342870 | Barrier, Lock |
|
- | |||||
| 48 | 4323971 | Screw |
|
- | |||||
| 49 | 4338011 | Trim, Side |
|
- | |||||
| 50 | 4338114 | Bottom, Oven |
|
- | |||||
| 51 | 4335557 | Rack, Oven |
|
- | |||||
| 52 | 4396923 | Pan, Broiler (Replaces: 4336602) |
|
Immediately | $ 54.64 | ||||
| 53 | 4396923 | Broiler, Grid Pan (Replaces: 4334897) |
|
Immediately | $ 54.64 | ||||
| 54 | 4338310 | Overlay, Lower Panel |
|
- | |||||
| 55 | 4338489 | Gasket, Flue Deflector |
|
- |
