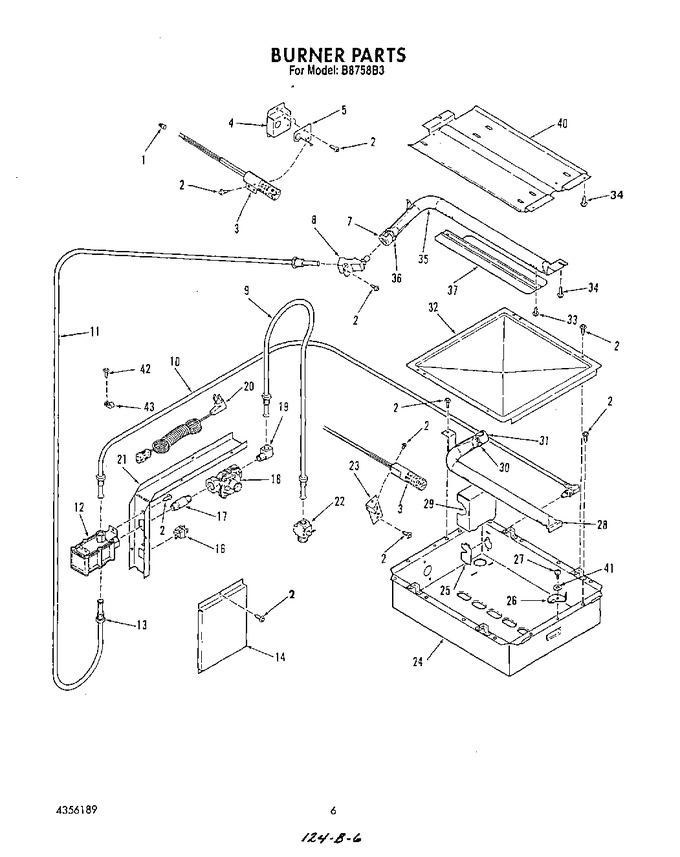

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4323866		Nut, Wire   (Replaces: 4323866)				$ 10.48
2	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
3	4342528		Igniter   (Replaces: 4338008)			Immediately	$ 98.63
4	4337895		Cover, Igniter		Appelez-nous	-
5	4335389		Bracket-igniter		Appelez-nous	-
7	4331501		Shutter, Air		Appelez-nous	-
8	4342867		Orifice, Broiler		Appelez-nous	-
9	4338164		Tubing		Appelez-nous	-
10	4338010		Tubing-oven Burner		Appelez-nous	-
11	4342731		Tubing		Appelez-nous	-
12	4338024		Valve, Control		Appelez-nous	-
13	4324278		Nut, Inverted 3/8		Appelez-nous	-
14	4338227		Cover, Valve		Appelez-nous	-
16	4324642		Disconnect		Appelez-nous	-
17	4328274		Connector		Appelez-nous	-
18	4338220		Regulator		Appelez-nous	-
19	4327545		Elbow		Appelez-nous	-
20	4351570		Cord, Power		Appelez-nous	-
21	4337977		Cover, Wire		Appelez-nous	-
22	4333122		Valve, Shut-off		Appelez-nous	-
23	4331163		Bracket, Igniter		Appelez-nous	-
24	4337896		Box, Burner		Appelez-nous	-
25	4335704		Plate, Orifice Mounting		Appelez-nous	-
26	4335708		Latch		Appelez-nous	-
27	4335745		Screw, Shoulder		Appelez-nous	-
28	4337897		Burner, Oven		Appelez-nous	-
29	4336678		Shield		Appelez-nous	-
30	4351838		Screw		Appelez-nous	-
31	4351837		Shutter, Air		Appelez-nous	-
32	4338511		Bottom, Baffle		Appelez-nous	-
33	WP489128		Screw No.8-32x3/8   (Replaces: 4323625)				$ 10.26
34	WP308685		Screw No.10   (Replaces: 4323379)			Immediately	$ 7.08
35	4337898		Burner, Broiler		Appelez-nous	-
36	4331502		Screw, Adjustment		Appelez-nous	-
37	4337913		Baffle, Burner		Appelez-nous	-
40	4337899		Baffle, Broiler		Appelez-nous	-
41	4337031		Washer, Spring		Appelez-nous	-
42	WP999367		Screw   (Replaces: 4333332)				$ 7.70
43	4323987		Clip		Appelez-nous	-
