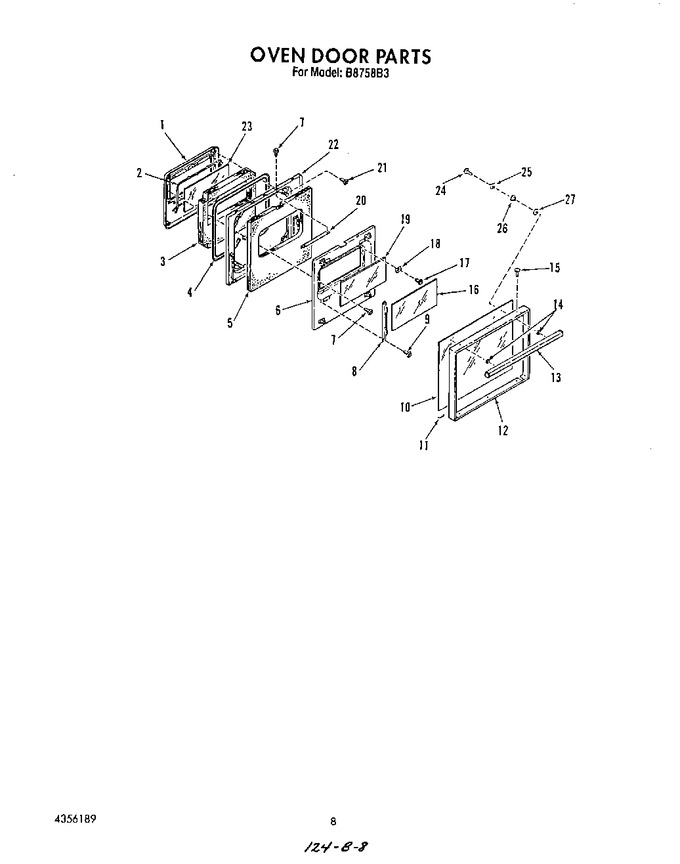

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4338241		Plug-inner Lining		Appelez-nous	-
2	4342634		Seal, Door		Appelez-nous	-
3	4354814		Insulation-plug		Appelez-nous	-
4	4335546		Seal-oven Door		Appelez-nous	-
5	4354813		Insulation-lining		Appelez-nous	-
6	4337826		Retainer-door Insulation		Appelez-nous	-
7	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4331106)				$ 7.38
8	4335518		Retainer-glass (lt/rt)		Appelez-nous	-
9	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
10	4337692		Glass-outer Door		Appelez-nous	-
11	4324217		Cushion		Appelez-nous	-
12	4337694		Frame-door		Appelez-nous	-
13	4337687		Handle-door		Appelez-nous	-
14	4323997		Spacer		Appelez-nous	-
15	4336048		Screw		Appelez-nous	-
16	4335509		Glass, Intermediate		Appelez-nous	-
17	4327611		Screw, No.10-32 X 17/32		Appelez-nous	-
18	4334791		Retainer-glass (4)		Appelez-nous	-
19	4335508		Glass-center Door		Appelez-nous	-
20	4338250		Support, Lining		Appelez-nous	-
21	W10850756		Screw No.10-32x3/8   (Replaces: 4323777)				$ 7.38
22	4338084		Lining-door		Appelez-nous	-
23	4335506		Glass-inner Door		Appelez-nous	-
24	WP999367		Screw   (Replaces: 4328242)				$ 7.70
25	4336868		Washer		Appelez-nous	-
26	4336869		Spacer, Glass		Appelez-nous	-
27	WP285432		14``   (Replaces: 4325037)				$ 7.34
27	4323694		Washer		Appelez-nous	-
27	4336940		Sensor		Appelez-nous	-
27	4338499		Fan		Appelez-nous	-
27	4337736		Relay		Appelez-nous	-
27	4325031		Eyelet Terminal		Appelez-nous	-
27	4325035		Flag Terminal Faston Terminal		Appelez-nous	-
27	4325036		3/16``		Appelez-nous	-
