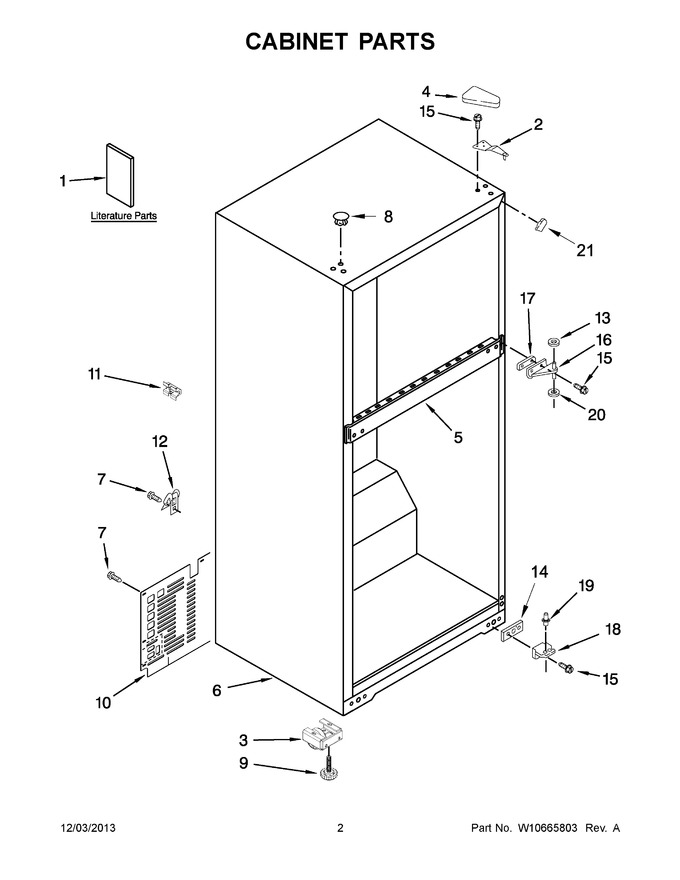

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10214129		Use And Care Guide		Appelez-nous	-
1	677969		Do-it-yourself Repair Manuals				$ 30.30
1	W10402929		Service & Wiring Sheet		Appelez-nous	-
1	W10564384		Energy Label		Appelez-nous	-
2	WP2261963		Assembly, Top Hinge   (Replaces: 2261963)			Immediately	$ 99.45
3	WPW10142530		Assembly, Roller   (Replaces: W10142530)			Immediately	$ 112.48
4	WP2213363		Cover, Hinge (black)   (Replaces: 2213363)			Immediately	$ 18.21
5	N/P		Center Rail (not A Serviceable Part)		Appelez-nous	-
6	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
7	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
8	WPW10520305		Hole Plug (black)   (Replaces: W10520305)				$ 18.27
9	WPW10133299		Leveler   (Replaces: W10133299)				$ 11.76
10	W10570558		Cover Unit				$ 98.48
11	2266506		Spacer, Back				$ 13.70
12	549193		Clamp, Power Cord				$ 13.39
13	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 9.88
14	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.77
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	WP2166037		Assembly, Center Hinge   (Replaces: 2166086)				$ 78.16
17	2215385		Shim Hinge, Center (black)				$ 86.99
18	WP2325482		Hinge, Bottom   (Replaces: 2325482)			Immediately	$ 76.19
19	WP2325483		Pin, Bottom Hinge   (Replaces: 2325483)			Immediately	$ 7.19
20	WP487802		Washer   (Replaces: 487802)			Immediately	$ 7.91
21	W11500943		Corner Filler (black)   (Replaces: 2215384)				$ 7.60
