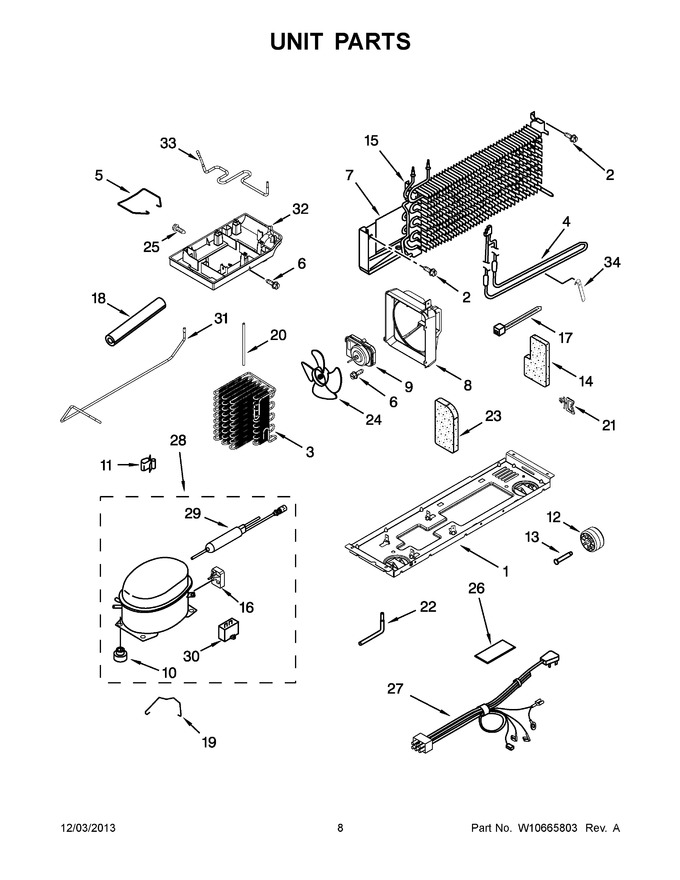

05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10573847 | Support Plate, Compressor |
|
Immediately | $ 141.58 | ||||
| 2 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 3 | W11685315 | Condenser (Replaces: W10487115) |
|
Immediately | $ 96.73 | ||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 93.70 | ||||
| 5 | 2264835 | Clip, Condenser |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.06 | ||||
| 7 | 2319224 | Shield, Heat |
|
$ 116.21 | |||||
| 8 | WPW10570380 | Scroll, Fan (Replaces: W10570380) |
|
$ 75.96 | |||||
| 9 | W11578915 | Motor, Condenser (Replaces: 2188875) |
|
Immediately | $ 71.42 | ||||
| 10 | WPW10169124 | Grommet (Replaces: 2264447) |
|
Immediately | $ 7.19 | ||||
| 11 | W10812038 | Clip, Wire (compressor) (Replaces: 939054) |
|
- | |||||
| 12 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 13 | WP2264756 | Axle, Roller (Replaces: 2264756) |
|
$ 7.19 | |||||
| 14 | 2262191 | Wedge, Evaporator |
|
- | |||||
| 15 | WP2263920 | Evaporator (Replaces: 2263920) |
|
Immediately | $ 317.35 | ||||
| 16 | WPW10399283 | Start Device, (Replaces: W10399283) |
|
$ 167.91 | |||||
| 17 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.90 | |||||
| 18 | 2264838 | Sleeve |
|
$ 87.89 | |||||
| 19 | 2212996 | Strap, Bale |
|
$ 12.11 | |||||
| 20 | W10582029 | Tube, Drain |
|
- | |||||
| 21 | 2266467 | Clip-harness |
|
- | |||||
| 22 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 103.44 | |||||
| 23 | 2262192 | Wedge, Evaporator |
|
- | |||||
| 24 | 2264129 | Fan Blade |
|
Immediately | $ 104.75 | ||||
| 25 | WP489489 | Screw (Replaces: 2264841) |
|
$ 6.47 | |||||
| 26 | 2266360 | Shield-electrical |
|
- | |||||
| 27 | W10839396 | Wire Assembly, Unit (Replaces: W10488462) |
|
$ 90.59 | |||||
| 28 | W10822653 | Compressor (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: W10399120) |
|
$ 372.04 | |||||
| 29 | W10843121 | Drier (Replaces: W10190413) |
|
Immediately | $ 52.57 | ||||
| 30 | WP65889-4 | Capacitor (Replaces: 2252799) |
|
Immediately | $ 61.14 | ||||
| 31 | W10585747 | Tube, Suction |
|
$ 76.11 | |||||
| 32 | W10565417 | Tray, Evaporator |
|
$ 36.53 | |||||
| 33 | W10585741 | Tube, Discharge |
|
$ 112.94 | |||||
| 34 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 19.16 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 130.71 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 91.35 | ||||
| NI | N/P | Refrigerant Charge 3.95 Oz (r-134) |
|
- | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 128.09 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 |
