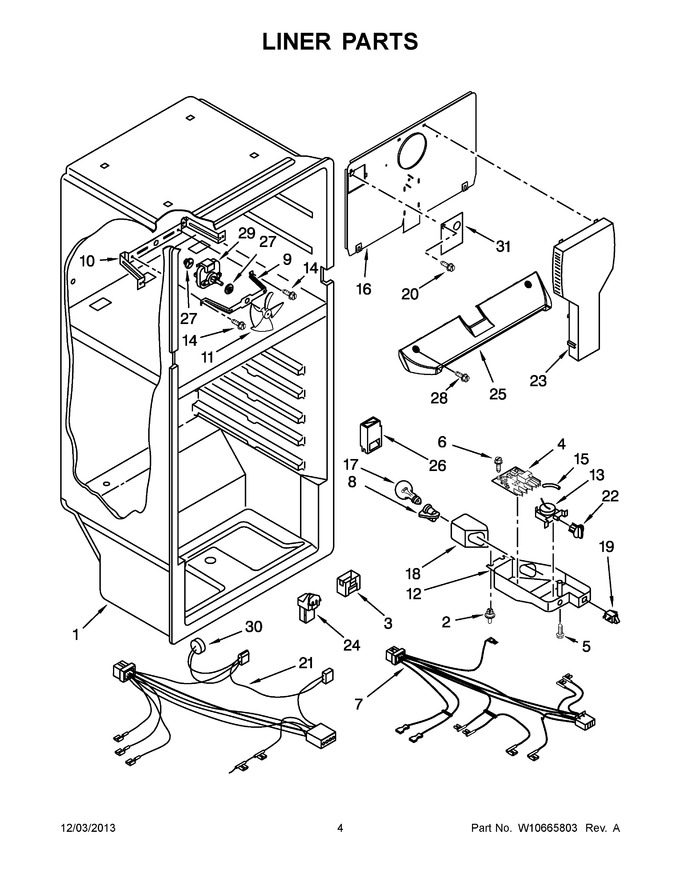

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 939962 | Rivet, Plastic |
|
$ 11.83 | |||||
| 3 | 2183061 | Cover, Air Diffuser |
|
$ 36.62 | |||||
| 4 | 4388931 | Adaptive Defrost Control (Replaces: 2303825) |
|
Immediately | $ 243.98 | ||||
| 5 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.95 | |||||
| 6 | WP487353 | Screw (Replaces: 488693) |
|
$ 7.57 | |||||
| 7 | 2265930 | Wire Assembly, Control Box |
|
$ 132.96 | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 9 | WPW10180172 | Bracket, Fan Support (Replaces: W10180172) |
|
$ 40.27 | |||||
| 10 | 2197405 | Bracket, Fan Mounting |
|
$ 30.23 | |||||
| 11 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 12 | 2215210 | Control Box |
|
$ 122.36 | |||||
| 13 | WPW10511937 | Thermostat (Replaces: 2325701) |
|
Immediately | $ 180.41 | ||||
| 14 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.95 | |||||
| 15 | WP2196003 | Barrier, Thermostat Tube (Replaces: 1118680) |
|
$ 7.95 | |||||
| 16 | W10244012 | Cover, Evaporator |
|
$ 111.35 | |||||
| 17 | 8009 | Bulb, Light (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 18 | W11034434 | Shield, Light (Replaces: 9791702) |
|
Immediately | $ 103.73 | ||||
| 19 | W11384469 | Switch, Rocker Arm (refrigerator) (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 20 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 21 | W10290502 | Wire Assembly, Freezer Compartment |
|
- | |||||
| 22 | WP2202885 | Knob, Control (Replaces: 2202885) |
|
$ 26.38 | |||||
| 23 | 9790408 | Tower, Air |
|
$ 85.98 | |||||
| 24 | 2197052 | Assembly, Hood And Foil |
|
- | |||||
| 25 | 2261978 | Cover, Air Return (freezer) |
|
$ 135.09 | |||||
| 26 | 2221992 | Assembly, Air Diffuser |
|
$ 35.67 | |||||
| 27 | WP2264462 | Grommet, Motor (Replaces: 2264462) |
|
Immediately | $ 43.97 | ||||
| 28 | WP489474 | Screw (Replaces: 2262178) |
|
Immediately | $ 7.97 | ||||
| 29 | WPW10188389 | Motor, Fan (Replaces: W10188389) |
|
Immediately | $ 76.83 | ||||
| 30 | WPW10225581 | Bi-metal, Defrost (Replaces: 2266067) |
|
Immediately | $ 50.77 | ||||
| 31 | WP2217784 | Cover, Hole (Replaces: 2217784) |
|
$ 44.97 |
