SELECT A DIAGRAM

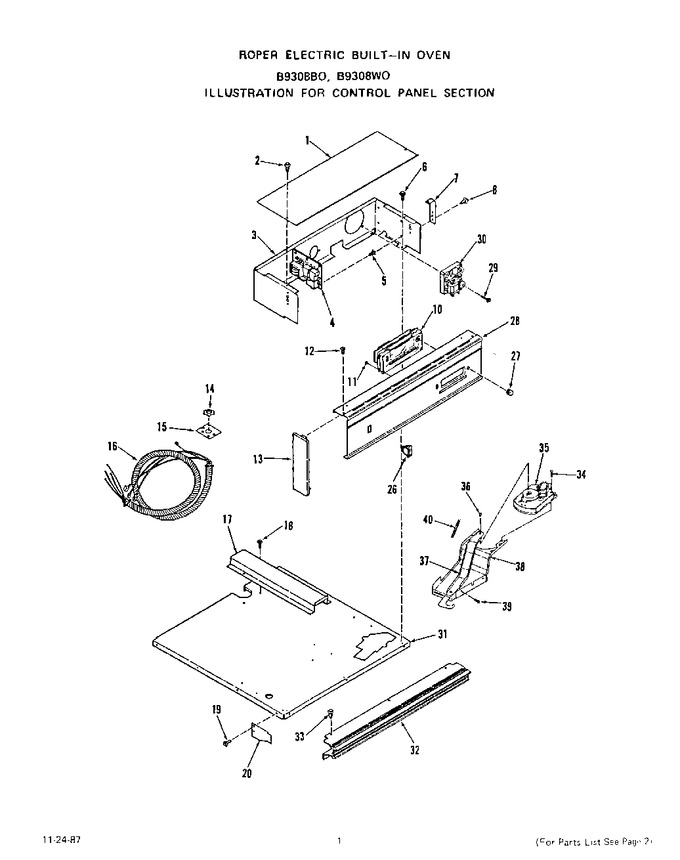

02 - Control Panel, Lit/optional


03 - Body


04 - Wiring Harness


05 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	337414		Top Cover		Appelez-nous	-
2	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
3	339476		Control Housing		Appelez-nous	-
4	337672		Relay Circuit Board		Appelez-nous	-
5	331469		Spacer Pcb		Appelez-nous	-
6	327320		Screw 10-16x7/16``		Appelez-nous	-
7	336563		Bracket Control Panel		Appelez-nous	-
8	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
10	338468		Clock/oven Control W/lens		Appelez-nous	-
10	339657		Clock/oven Control Lens		Appelez-nous	-
11	78153		Screw 6-32x5/16``		Appelez-nous	-
12	338950		Screw 10-16 (model B9308wo)		Appelez-nous	-
12	336529		Screw 10-16 (model B9308bo)		Appelez-nous	-
13	336511		End Cap (left (model B9308bo))		Appelez-nous	-
13	338935		End Cap (left (model B9308wo))		Appelez-nous	-
13	336512		End Cap (right (model B9308bo))		Appelez-nous	-
13	338936		End Cap (right (model B9308wo))		Appelez-nous	-
14	110340		Nut (for Key 16)		Appelez-nous	-
15	294983		Plate (for Key 16)		Appelez-nous	-
16	336304		Harness Wire Conduit		Appelez-nous	-
17	327990		Wire Cover		Appelez-nous	-
18	327320		Screw 10-16x7/16``		Appelez-nous	-
19	327320		Screw 10-16x7/16``		Appelez-nous	-
20	336275		Heat Shield		Appelez-nous	-
26	334649		Switch (model B9308bo)		Appelez-nous	-
26	339394		Switch ((model B9308wo))		Appelez-nous	-
27	334045		Clock Knob (model B9308bo)		Appelez-nous	-
27	339930		Clock Knob ((model B9308wo))		Appelez-nous	-
28	338987		Control Panel (model B9308wo)		Appelez-nous	-
28	336278		Control Panel (model B9308bo)		Appelez-nous	-
29	105771		Screw 10-32x1``		Appelez-nous	-
30	336560		Fan		Appelez-nous	-
31	337724		Cabinet Top		Appelez-nous	-
32	338933		Control Panel Trim (model B9308wo)		Appelez-nous	-
32	336245		Control Panel Trim (model B9308bo)		Appelez-nous	-
33	336296		Screw (model B9308bo)		Appelez-nous	-
33	338954		Screw (model B9308wo)		Appelez-nous	-
34	232183		Screw 8-32x3/8``		Appelez-nous	-
35	338249		Lock Motor Asm		Appelez-nous	-
36	103436		Screw 8 - 32 X 3/4``		Appelez-nous	-
37	337971		Lock Lever		Appelez-nous	-
38	336556		Door Lock Plate		Appelez-nous	-
39	316849		Screw-10-32x1/2``		Appelez-nous	-
40	337019		Xinstallation Guide				$ 63.13
40	339051		Repair Parts List		Appelez-nous	-
40	337084		Owners Manual		Appelez-nous	-
40	337933		Lock Spring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
