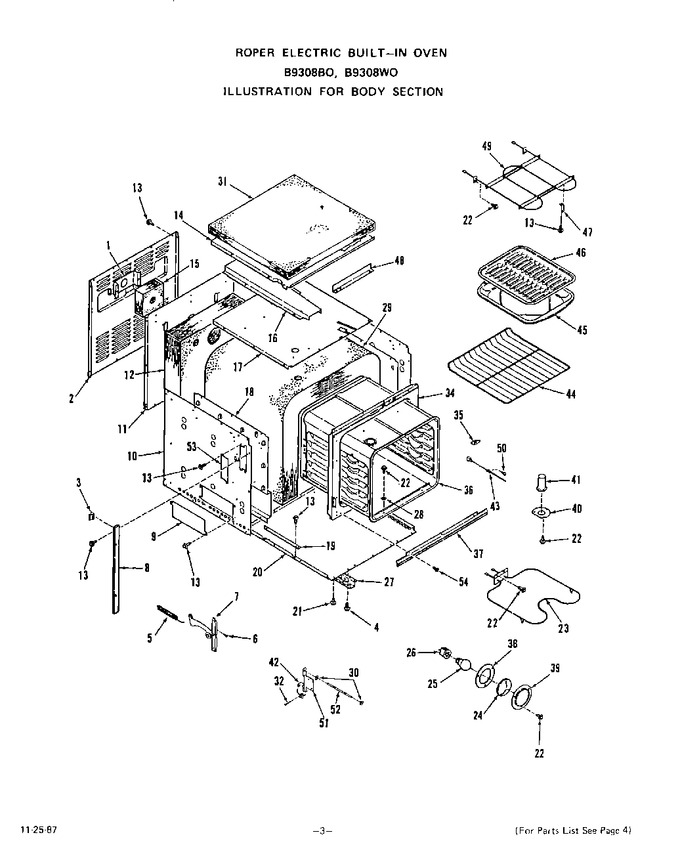

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	323630		Insulation Retainer-oven Light		Appelez-nous	-
2	337943		Cabinet Back		Appelez-nous	-
3	340439		Spacer (b9308wo)		Appelez-nous	-
3	328077		Spacer (b9308bo)		Appelez-nous	-
4	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
5	328961		Oven Door Spring (lt. Or Rt.)		Appelez-nous	-
6	331704		Screw		Appelez-nous	-
7	337372		Hinge (left)		Appelez-nous	-
7	337371		Hinge (right)		Appelez-nous	-
8	336237		Side Trim (lt. Or Rt.) (b9308bo)		Appelez-nous	-
8	338941		Side Trim (lt. Or Rt.) (b9308wo)		Appelez-nous	-
9	328112		Cover Plate		Appelez-nous	-
10	337730		Cabinet Side-lt. Or Rt.		Appelez-nous	-
11	336257		Main Back		Appelez-nous	-
12	336286		Insulation-oven Back & Bottom (1 Piece)		Appelez-nous	-
13	327320		Screw 10-16x7/16``		Appelez-nous	-
14	337726		Insulation Retainer-cabinet Top		Appelez-nous	-
15	WP660579		Insulation-oven Light   (Replaces: 311715)				$ 164.26
16	336779		Vent Box		Appelez-nous	-
17	336578		Insulation Retainer-oven Top		Appelez-nous	-
18	338266		Insulation Retainer-oven Side (lt. Or Rt.)		Appelez-nous	-
19	328141		Insulation Retainer Bracket (lt. Or Rt.)		Appelez-nous	-
20	327949		Cabinet Bottom		Appelez-nous	-
21	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
22	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 193.45
23	328113		Bake Element		Appelez-nous	-
24	114989		Oven Light Lens		Appelez-nous	-
25	DA96-01243C		Oven Light Bulb   (Replaces: 111257)				$ 160.00
26	87883		Oven Light Bulb Holder		Appelez-nous	-
27	338208		Bottom Channel-lt. Or Rt.		Appelez-nous	-
28	21067		Washer		Appelez-nous	-
29	328103		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
30	335069		Flat Washer		Appelez-nous	-
31	333118		Insulation-cabinet Top		Appelez-nous	-
32	328956		Screw 4-40x11/16``		Appelez-nous	-
34	338269		Front Frame		Appelez-nous	-
35	304835		Cover		Appelez-nous	-
36	336190		Oven Body		Appelez-nous	-
37	338948		Lower Trim (model B9308wo)		Appelez-nous	-
37	336243		Lower Trim (model B9308bo)		Appelez-nous	-
38	229371		Light Lens Gasket		Appelez-nous	-
39	229372		Light Lens Retainer		Appelez-nous	-
40	328303		Vent Tube Clamp		Appelez-nous	-
41	WP660579		Oven Vent Tube   (Replaces: 311716)				$ 164.26
42	337711		Micro Switch		Appelez-nous	-
43	12001656		Sensor   (Replaces: 334300)			Immediately	$ 50.14
44	WP330190		Oven Rack (2 Req)   (Replaces: 328135)				$ 44.45
45	331592		Broiler Pan		Appelez-nous	-
46	326297		Broiler Pan Grid		Appelez-nous	-
47	324809		Broiler Element Support (2 Req)		Appelez-nous	-
48	337922		Baffle		Appelez-nous	-
49	328115		Broiler Element		Appelez-nous	-
50	337857		Screw		Appelez-nous	-
51	327770		Insulation Switch Valve		Appelez-nous	-
52	337723		Push Rod		Appelez-nous	-
53	337907		Cover Plate		Appelez-nous	-
54	338954		Screw (model B9308wo)		Appelez-nous	-
54	336296		Screw (model B9308bo)		Appelez-nous	-
