Diagram for 02 - Control Panel
02 - Control Panel

Diagram for 03 - Oven Door Lock
03 - Oven Door Lock

Diagram for 04 - Lower Body
04 - Lower Body

Diagram for 05 - Oven Door , Lit/optional
05 - Oven Door , Lit/optional


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 313075 Spring Appelez-nous -
2 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 8.63

3 288248 Screw 10-24x1/4`` Appelez-nous -
4 337409 Lock Handle Appelez-nous -
5 335738 Knob-lock Handle Appelez-nous -
6 335692 Clip-knob Appelez-nous -
7 311869 Oven Door Lock Assm. Appelez-nous -

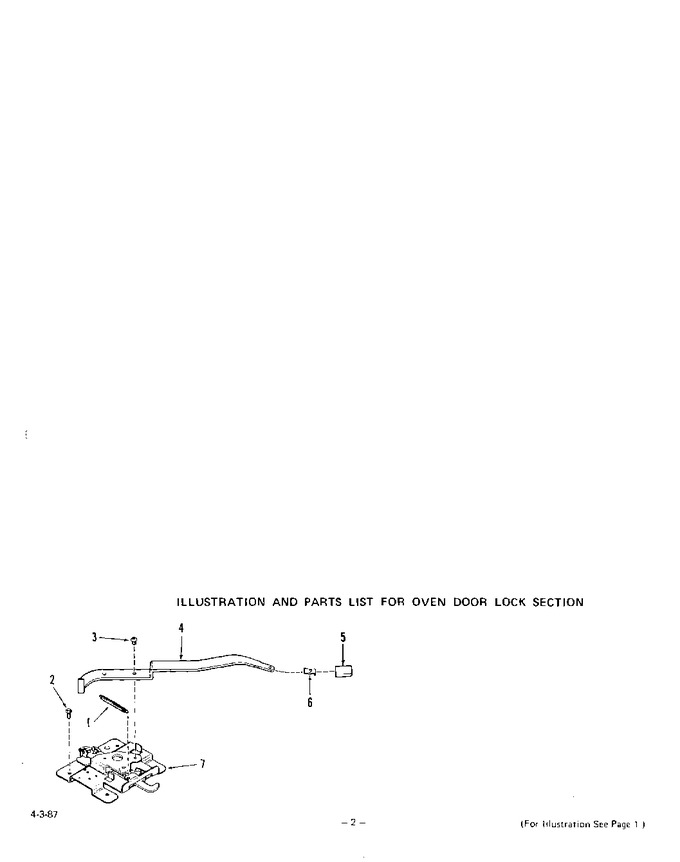

    View Diagram in Separate Window     Print Icon   Print Part List
