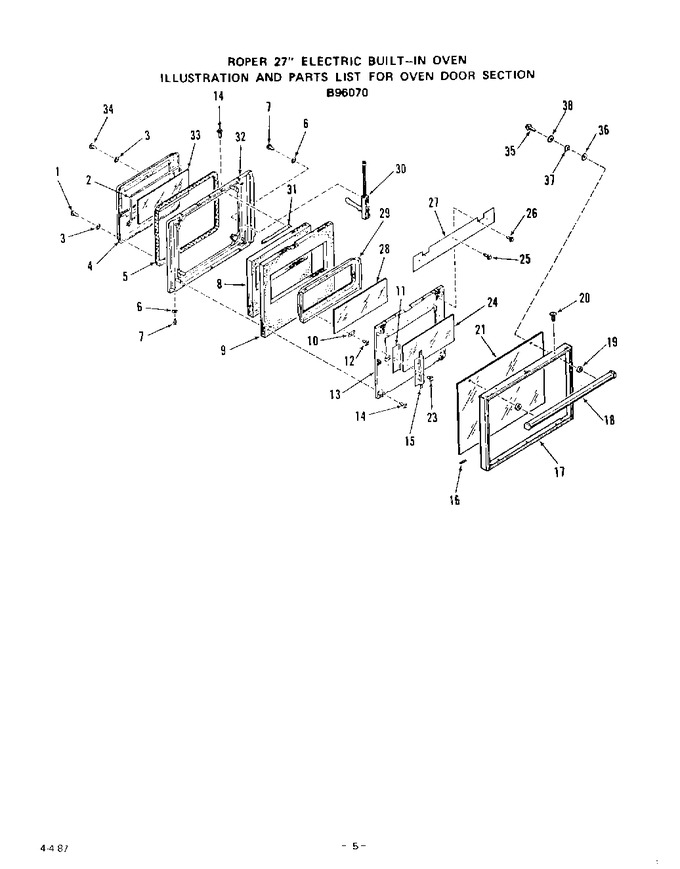

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	326974		Screw 10abx1/2``		Appelez-nous	-
2	302935		Door Seal		Appelez-nous	-
3	21067		Washer		Appelez-nous	-
4	331672		Plug-oven Door		Appelez-nous	-
5	311873		Oven Door Gasket		Appelez-nous	-
6	21067		Washer		Appelez-nous	-
7	239113		Screw 10-32x3/8``		Appelez-nous	-
8	311872		Insulation-oven Door Plug		Appelez-nous	-
9	311874		Insulation-oven Door Lining		Appelez-nous	-
10	312888		Door Glass Retainer (4 Req)		Appelez-nous	-
11	310929		Spacer-oven Door Glass (lt. Or Rt.)		Appelez-nous	-
12	295849		Screw 10-32x17/32``		Appelez-nous	-
13	336112		Retainer-oven Door Insulation		Appelez-nous	-
14	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
15	WP487353		Clamp-oven Door Glass (lt. Or Rt.)   (Replaces: 307842)				$ 7.95
16	112370		Cushion		Appelez-nous	-
17	336211		Frame-oven Door		Appelez-nous	-
18	336204		Oven Door Handle		Appelez-nous	-
19	DE81-05147A		Spacer, Door Handle   (Replaces: 107158)				$ 228.66
20	329382		Screw 6-20x3/8``		Appelez-nous	-
21	336209		Oven Door Glass-outer		Appelez-nous	-
23	69364		Screw 10abx3/4``		Appelez-nous	-
24	308239		Oven Door Glass-intermediate		Appelez-nous	-
25	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
26	293121		Screw 6-32x1/4``		Appelez-nous	-
27	336111		Baffle-oven Door Lining		Appelez-nous	-
28	296214		Oven Door Glass-center		Appelez-nous	-
29	336442		Retainer-oven Door Glass		Appelez-nous	-
30	331028		Oven Door Hinge (lt. Or Rt.)		Appelez-nous	-
31	WP312967		Oven Door Lining Stiffener   (Replaces: 312967)			Immediately	$ 12.46
32	331682		Oven Door Lining		Appelez-nous	-
33	312426		Oven Door Glass-inner		Appelez-nous	-
34	105799		Screw 10abx1		Appelez-nous	-
35	300864		Screw		Appelez-nous	-
36	333014		Washer-fiber		Appelez-nous	-
37	333015		Spacer		Appelez-nous	-
38	336312		Sensor		Appelez-nous	-
38	99279		Washer		Appelez-nous	-
38	336310		Main		Appelez-nous	-
38	333040		Lock Switch		Appelez-nous	-
