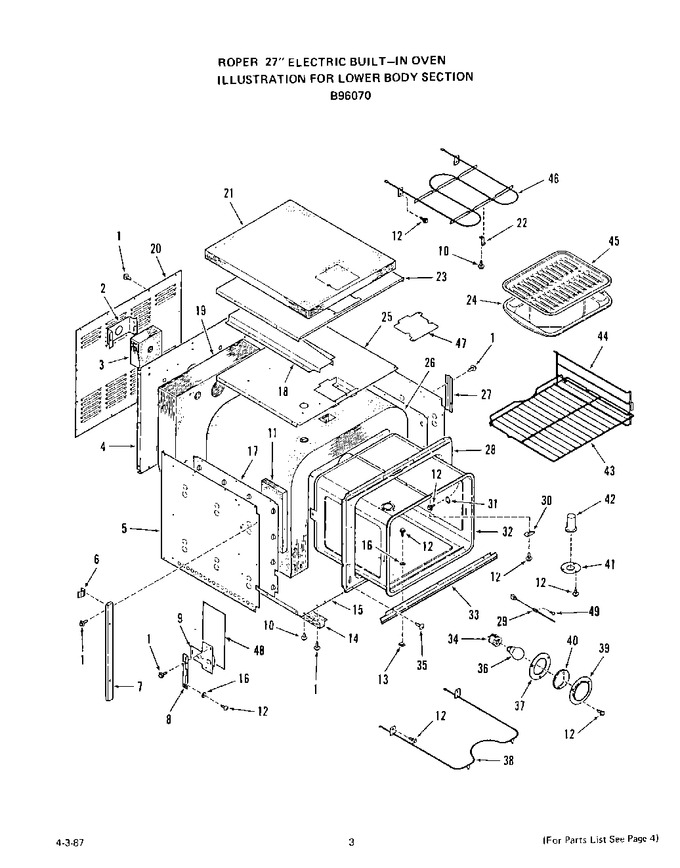

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
2	323630		Insulation Retainer-oven Light		Appelez-nous	-
3	WP660579		Oven Light Insulation   (Replaces: 311715)				$ 164.26
4	336259		Main Back		Appelez-nous	-
5	323715		Left		Appelez-nous	-
5	323716		Right		Appelez-nous	-
6	311726		Spacer (4 Req)		Appelez-nous	-
7	336238		Side Trim-lt. Or Rt.		Appelez-nous	-
8	322611		Hinge Angle-lt. Or Rt.		Appelez-nous	-
9	322609		Hinge Box-lt. Or Rt.		Appelez-nous	-
10	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
11	279470		Insulation (lt. Or Rt.)		Appelez-nous	-
12	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 193.45
13	107956		Speed Nut 10-32		Appelez-nous	-
14	328042		Bottom Channel-lt. Or Rt.		Appelez-nous	-
15	323740		Cabinet Bottom		Appelez-nous	-
16	106462		Washer		Appelez-nous	-
17	323636		Insulation Retainer-oven Side (lt. Or Rt.)		Appelez-nous	-
18	323640		Top Oven Vent Box		Appelez-nous	-
19	336287		Insulation-oven Back & Bottom		Appelez-nous	-
20	323722		Cabinet Back		Appelez-nous	-
21	333119		Insulation-cabinet Top		Appelez-nous	-
22	324809		Broiler Element Support		Appelez-nous	-
23	333117		Insulation Retainer-cabinet Top		Appelez-nous	-
24	331592		Broiler Pan		Appelez-nous	-
25	323634		Insulation Retainer-oven Top		Appelez-nous	-
26	311712		Insulation Oven Top & Sides (1 Piece)		Appelez-nous	-
27	325532		Raceway		Appelez-nous	-
28	336575		Front Frame		Appelez-nous	-
29	12001656		Sensor   (Replaces: 334300)			Immediately	$ 50.14
30	304835		Cover		Appelez-nous	-
31	237762		Cover Plate-thermostat Bulb		Appelez-nous	-
32	336186		Oven Body		Appelez-nous	-
33	336242		Lower Trim		Appelez-nous	-
34	87883		Holder-oven Light Bulb		Appelez-nous	-
35	112013		Screw 10-32 X 5/8``		Appelez-nous	-
36	DA96-01243C		Oven Light Bulb   (Replaces: 111257)				$ 160.00
37	229371		Gasket-oven Light		Appelez-nous	-
38	WG02F05449		Bake Element   (Replaces: 320418)				$ 84.06
39	229372		Lens Retainer-oven Light		Appelez-nous	-
40	114989		Oven Light Lens		Appelez-nous	-
41	303612		Oven Vent Clamp		Appelez-nous	-
42	WP660579		Oven Vent Tube   (Replaces: 311716)				$ 164.26
43	311735		Oven Rack (2 Req)		Appelez-nous	-
44	305350		Oven Rack Guide-rt. Or Lt.		Appelez-nous	-
45	326297		Broiler Pan Grid		Appelez-nous	-
46	ET342		Broiler Element   (Replaces: 319526)				$ 49.95
47	323648		Cover Plate-lock		Appelez-nous	-
48	114300		Insulation Cover		Appelez-nous	-
49	336152		Screw		Appelez-nous	-
