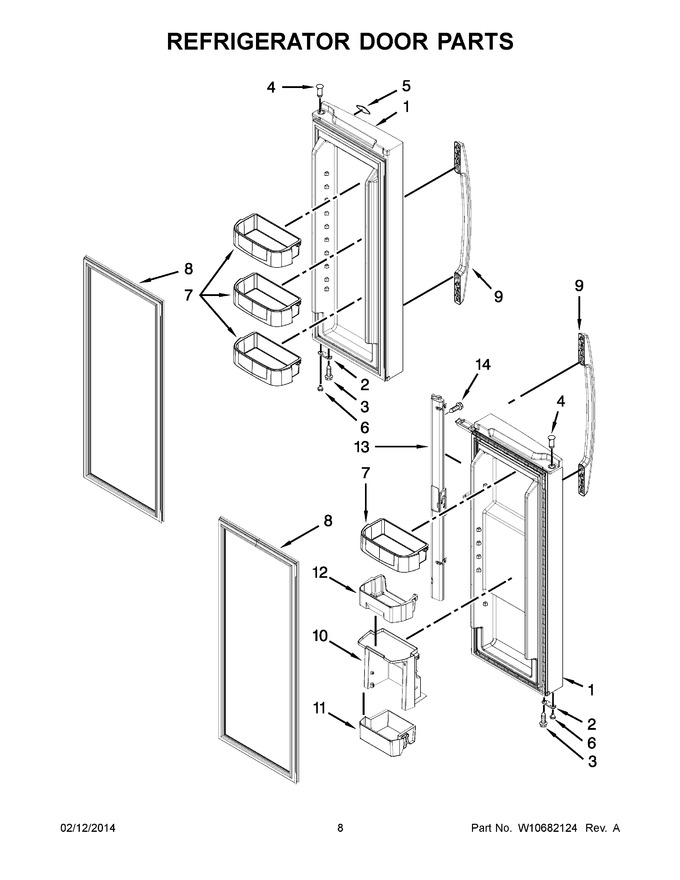

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10557498 | Door, Refrigerator (includes No.8) (left Hand (white)) |
|
- | |||||
| 1 | LW10353181 | Door, Refrigerator (includes No.8) (right Hand (white)) (Replaces: W10353181) |
|
$ 823.57 | |||||
| 1 | LW10557499 | Door, Refrigerator (includes No.8) (left Hand (black)) (Replaces: W10557499) |
|
- | |||||
| 1 | LW10413518 | Door, Refrigerator (includes No.8) (right Hand (black)) (Replaces: W10413518) |
|
$ 637.16 | |||||
| 1 | LW10557500 | Door, Refrigerator (includes No.8) (left Hand (stainless)) (Replaces: W10557500) |
|
$ 979.67 | |||||
| 1 | LW10413519 | Door, Refrigerator (includes No.8) (right Hand (stainless)) (Replaces: W10413519) |
|
$ 827.54 | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11544568 | Thimble, Top (white) (Replaces: W10366270) |
|
Immediately | $ 13.95 | ||||
| 4 | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 12.71 | |||||
| 5 | WPW10170766 | Badge (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 7.55 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10331764) |
|
Immediately | $ 72.18 | ||||
| 8 | W10460612 | Gasket, Door (beige) (Replaces: W10353189) |
|
Immediately | $ 232.69 | ||||
| 8 | WPW10460580 | Gasket, Door (grey) (Replaces: W10413468) |
|
Immediately | $ 221.51 | ||||
| 8 | W10460610 | Gasket, Door (black) (Replaces: W10413465) |
|
$ 225.77 | |||||
| 9 | W10252288A | Assembly, Handle (stainless) (Replaces: W10252288) |
|
$ 129.86 | |||||
| 9 | W10252285 | Assembly, Handle (black) |
|
- | |||||
| 9 | WPW10252284A | Assembly, Handle (white) (Replaces: W10252284) |
|
$ 76.28 | |||||
| 10 | WPW10317224 | Compartment, Utility (Replaces: W10317224) |
|
$ 103.80 | |||||
| 11 | WPW10372916 | Bin, Shallow (Replaces: W10372916) |
|
Immediately | $ 220.96 | ||||
| 12 | W10462298 | Bin, Low Profile |
|
$ 132.31 | |||||
| 13 | WPW10624450 | Assembly, Mullion (grey) (Replaces: W10624450) |
|
Immediately | $ 223.83 | ||||
| 13 | W11692845 | Assembly, Mullion (black) (Replaces: W10624448) |
|
$ 241.66 | |||||
| 13 | WPW10624451 | Assembly, Mullion (white) (Replaces: W10624451) |
|
Immediately | $ 128.93 | ||||
| 14 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 |
