SELECT A DIAGRAM
New Model Search:

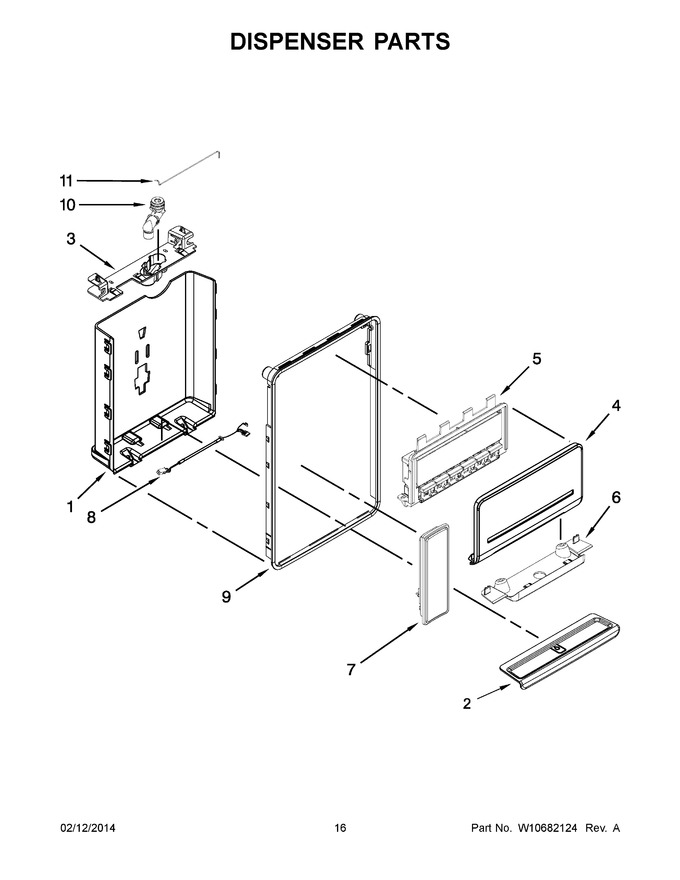

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WPW10356019 | Tray, Drip (grey) (Replaces: W10356019) |
|
Immediately | $ 58.09 | ||||
| 2 | WPW10356018 | Tray, Drip (black) (Replaces: W10356018) |
|
$ 57.60 | |||||
| 2 | WPW10300448 | Tray, Drip (white) (Replaces: W10300448) |
|
$ 57.78 | |||||
| 3 | W11616802 | Separator (Replaces: W10300437) |
|
$ 20.73 | |||||
| 4 | W10424428 | Fascia (black) |
|
$ 105.78 | |||||
| 4 | W10424427 | Fascia (silver Mirror) |
|
Immediately | $ 153.37 | ||||
| 5 | W11082784 | User Interface Assembly (Replaces: W10647622) |
|
Immediately | $ 457.61 | ||||
| 6 | W10356029 | Cover, Separator (chromium Frost) |
|
$ 46.24 | |||||
| 7 | W10433546 | Assembly, Pad (black) |
|
$ 285.76 | |||||
| 7 | W11715936 | Assembly, Pad (grey) (Replaces: W10433548) |
|
$ 149.25 | |||||
| 7 | W10433547 | Assembly, Pad (white) |
|
$ 292.37 | |||||
| 8 | W10465298 | Wire Assembly, Dispenser |
|
$ 78.87 | |||||
| 9 | W10356017 | Ring, Trim |
|
Immediately | $ 57.31 | ||||
| 10 | WP2305235 | Assembly, Spigot (Replaces: 2305235) |
|
$ 147.07 | |||||
| 11 | W10445080 | Tube, Water Dispenser |
|
$ 119.72 |
