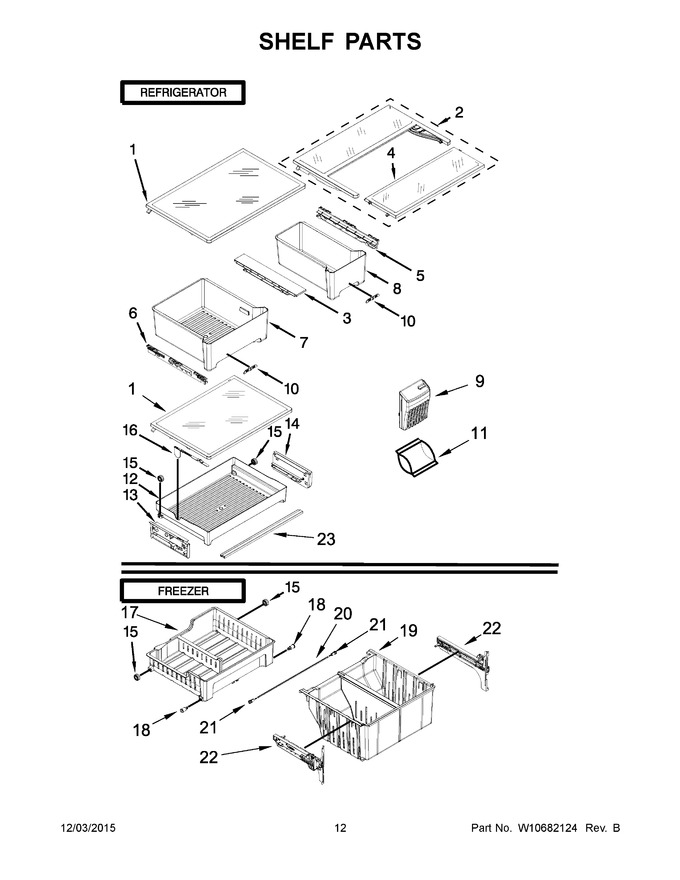

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10486290 | Assembly, Full Shelf (30") (Replaces: W10486290) |
|
$ 263.28 | |||||
| 2 | WPW10476425 | Flip Down Shelf Assembly (Replaces: W10476425) |
|
Immediately | $ 296.19 | ||||
| 3 | WPW10468557 | Rail, Track (center) (Replaces: W10468557) |
|
Immediately | $ 30.75 | ||||
| 4 | WPW10305243 | Shelf, Flip Down (Replaces: W10305243) |
|
$ 138.94 | |||||
| 5 | WPW10468556 | Rail, Track (right Hand) (Replaces: W10468556) |
|
Immediately | $ 7.55 | ||||
| 6 | WPW10468555 | Rail, Track (left Hand) (Replaces: W10468555) |
|
Immediately | $ 25.10 | ||||
| 7 | WPW10370327 | Pan, Crisper (16") (Replaces: W10370327) |
|
Immediately | $ 120.26 | ||||
| 8 | WPW10317184 | Pan, Crisper (8") (Replaces: W10317184) |
|
Immediately | $ 127.86 | ||||
| 9 | W11605789 | Holder, Produce Filter (Replaces: W10408748) |
|
Immediately | $ 17.66 | ||||
| 10 | W11590562 | Control, Humidity (Replaces: W10356846) |
|
$ 23.45 | |||||
| 11 | W10346771 | Filter, Produce Preserver |
|
- | |||||
| 12 | WPW10397907 | Assembly, Pantry Deli Pan (Replaces: W10397907) |
|
$ 150.24 | |||||
| 13 | W11581314 | Rail, Pantry (left Hand) (Replaces: W10317191) |
|
Immediately | $ 96.94 | ||||
| 14 | W11210990 | Rail, Pantry (right Hand) (Replaces: W10317189) |
|
$ 112.55 | |||||
| 15 | W11164152 | Roller (Replaces: W10278139) |
|
Immediately | $ 15.74 | ||||
| 16 | W10411411 | Control, Temperature |
|
$ 50.04 | |||||
| 17 | WPW10555437 | Bin, Upper Freezer (Replaces: W10555437) |
|
Immediately | $ 151.53 | ||||
| 18 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 36.54 | |||||
| 19 | WPW10317289 | Basket, Lower Freezer (Replaces: W10317289) |
|
$ 139.48 | |||||
| 20 | W10371538 | Shaft, Rack |
|
$ 89.84 | |||||
| 21 | WPW10277361 | Collar, Gear (Replaces: W10277361) |
|
$ 12.09 | |||||
| 22 | WPW10397636 | Adaptor, Freezer (left Hand) (Replaces: W10397636) |
|
Immediately | $ 295.48 | ||||
| 23 | W11241829 | Assembly, Pantry Cover Support (Replaces: W10507470) |
|
$ 152.21 | |||||
| 22A | WPW10397635 | Adaptor, Freezer (right Hand) (Replaces: W10397635) |
|
Immediately | $ 182.59 |
