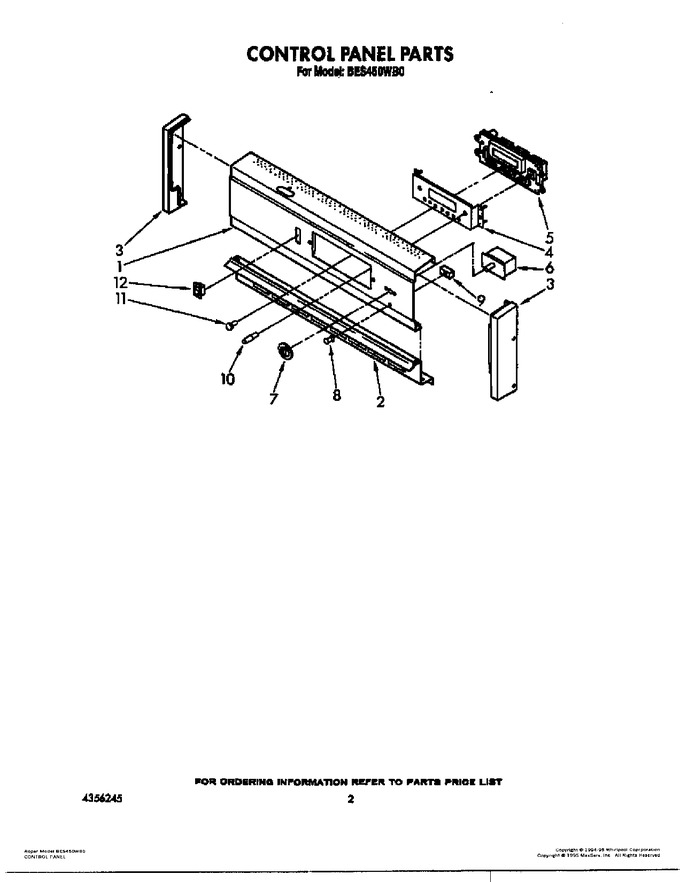

02 - Control Panel
03 - Component Shelf And Latch
04 - Upper Oven
05 - Lower Oven
06 - Upper Oven Door
07 - Lower Oven Door
08 - Oven Liner
09 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3180707 | Panel, Control |
|
- | |||||
| 2 | 3180643 | Insert, Control Panel |
|
- | |||||
| 3 | 4173601 | End Cap (screw, Black (6)) |
|
- | |||||
| 3 | 3180678 | End Cap (right) |
|
- | |||||
| 3 | 3180677 | End Cap (left) |
|
- | |||||
| 4 | 3180746 | Lens, Clock |
|
- | |||||
| 5 | 3181004 | Nut (4) |
|
- | |||||
| 5 | 4159445 | Screw, (2) |
|
- | |||||
| 5 | 3180745 | Control, Upper Oven |
|
- | |||||
| 6 | 3178284 | Thermostat, Lower Oven |
|
- | |||||
| 6 | 3178002 | Screw (2) |
|
- | |||||
| 7 | 3180949 | Knob, Thermostat |
|
- | |||||
| 8 | 3180920 | Lens, Indicator |
|
- | |||||
| 9 | 314031 | Indicator, Light |
|
$ 62.88 | |||||
| 10 | 3149784 | Knob, Bit Generator |
|
- | |||||
| 11 | 3149780 | Set Button, Knob |
|
- | |||||
| 12 | WP4314961 | Switch, Rocker (Replaces: 3148564) |
|
$ 93.95 | |||||
| LIT3180938 | Installation Instructions |
|
- | ||||||
| LIT4356245 | Repair Parts List |
|
- | ||||||
| LIT3177069 | Use & Care Guide |
|
- | ||||||
| LIT3180719 | Tech Sheet |
|
- |
