SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Component Shelf And Latch


04 - Upper Oven


05 - Lower Oven


06 - Upper Oven Door


07 - Lower Oven Door


08 - Oven Liner


09 - Wiring Harness

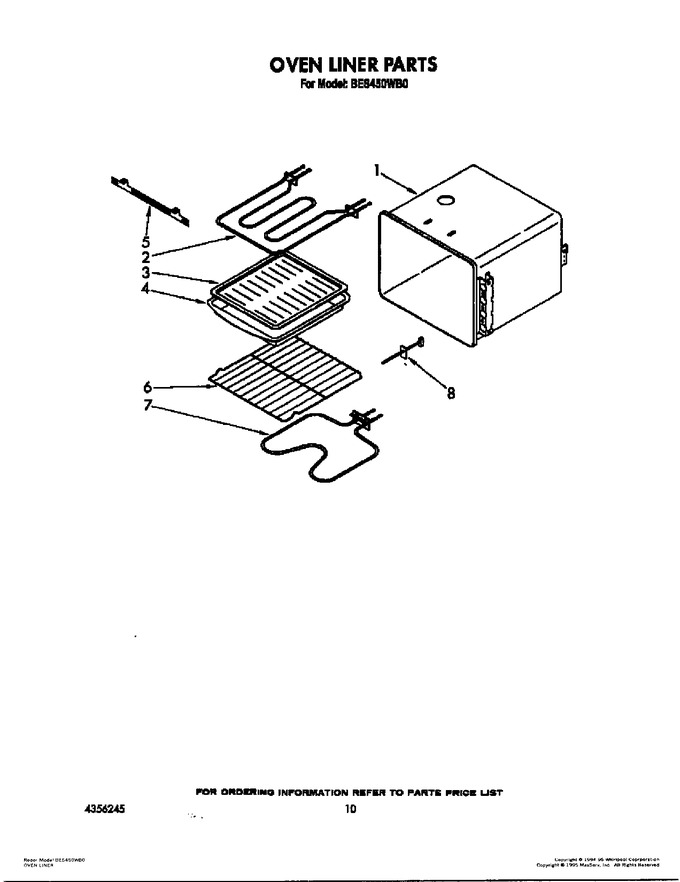

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3180803		Liner, Oven (lower)		Appelez-nous	-
1	3177461		Liner, Oven (upper)		Appelez-nous	-
2	661415		Element, Broil		Appelez-nous	-
2	3179117		Screw (6)		Appelez-nous	-
3	4396923		Grill, Broiler   (Replaces: 3147563)			Immediately	$ 60.71
4	4396923		Pan, Broiler   (Replaces: 3147564)			Immediately	$ 60.71
5	3180694		Bracket, Element		Appelez-nous	-
5	3179117		Screw (2)		Appelez-nous	-
6	3180866		Rack, Oven		Appelez-nous	-
7	WP661416		Element, Bake   (Replaces: 661416)				$ 153.22
7	3179117		Screw (2)		Appelez-nous	-
8	3148440		Sensor, Heat (upper Oven)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
