SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Component Shelf And Latch

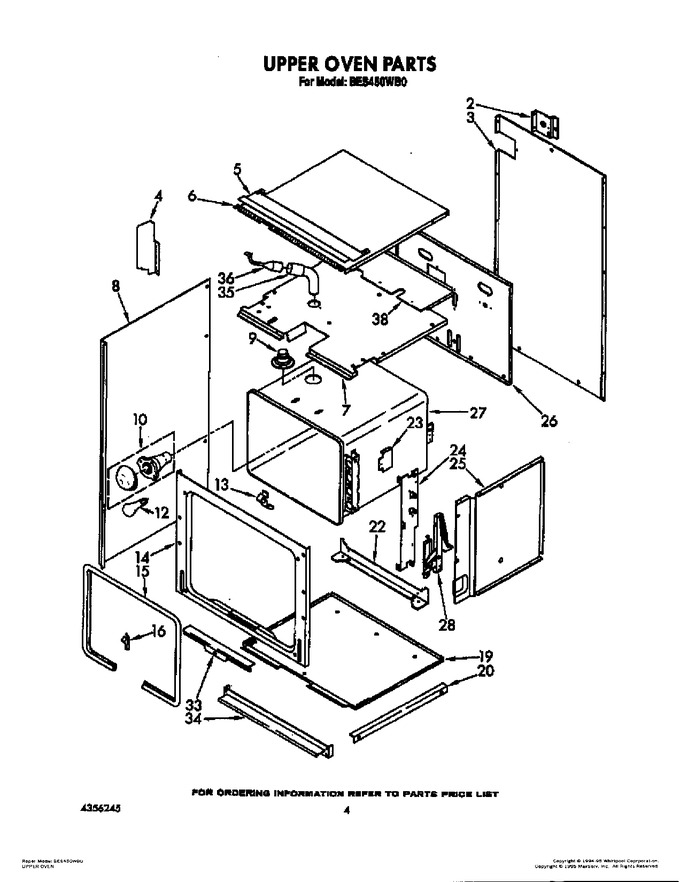

04 - Upper Oven


05 - Lower Oven


06 - Upper Oven Door


07 - Lower Oven Door


08 - Oven Liner


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 8.25
2	3177545		Bracket, Conduit		Appelez-nous	-
3	3177624		Cabinet, Back		Appelez-nous	-
3	WP90767		Screw (14)   (Replaces: 300890)			Immediately	$ 8.25
4	3181961		Baffle, End Cap (left Hand)		Appelez-nous	-
4	254225		Baffle, Endcap (screw (4))		Appelez-nous	-
4	3181962		Baffle, End Cap (right Hand)		Appelez-nous	-
5	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 7.55
5	3181758		Baffle, Control Back		Appelez-nous	-
6	3178139		Cabinet, Top		Appelez-nous	-
6	WP90767		Screw (5)   (Replaces: 300890)			Immediately	$ 8.25
7	WP90767		Screw (8)   (Replaces: 300890)			Immediately	$ 8.25
7	3177437		Top, Module		Appelez-nous	-
8	3177440		Side, Cabinet (r.h. & L.h.)		Appelez-nous	-
8	WP90767		Screw (i0)   (Replaces: 300890)			Immediately	$ 8.25
9	3179117		Screw (3)		Appelez-nous	-
9	3181699		Tube, Vent		Appelez-nous	-
10	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 87.01
12	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
13	98005642		Clip, Thermostat Bulb   (Replaces: 313382)			Immediately	$ 87.08
14	3177705		Frame, Front		Appelez-nous	-
15	3179814		Seal, Door		Appelez-nous	-
16	3179848		Clip, Oven Seal		Appelez-nous	-
19	3177622		Bottom, Module		Appelez-nous	-
20	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 8.25
20	3179220		Rail, Support (2)		Appelez-nous	-
22	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 8.25
22	3177434		Support, Oven		Appelez-nous	-
23	3178612		Shield, Radiation		Appelez-nous	-
23	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 8.25
24	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 8.25
24	3177433		Bracket, Hinge		Appelez-nous	-
24	3179795		Screw (6)		Appelez-nous	-
25	3177572		Side, Module (r.h. & L.h.)		Appelez-nous	-
25	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 8.25
26	WP90767		Screw (8)   (Replaces: 300890)			Immediately	$ 8.25
26	3177558		Back, Module		Appelez-nous	-
27	3177461		Liner, Oven		Appelez-nous	-
28	3179795		Screw (4)		Appelez-nous	-
28	3178298		Hinge, Door (2)		Appelez-nous	-
33	4168863		Screw		Appelez-nous	-
33	3179776		Screw (8)		Appelez-nous	-
33	3179587		Retainer, Seal		Appelez-nous	-
34	3180022		Screw (4)		Appelez-nous	-
34	3177752		Vent, Middle Trim		Appelez-nous	-
34	4168863		Screw (2)		Appelez-nous	-
35	3179922		Vent, Tube (upper, Female)		Appelez-nous	-
36	WP90767		Screw (3)   (Replaces: 300890)			Immediately	$ 8.25
36	3179924		Vent, Tube (upper, Male)		Appelez-nous	-
38	3178133		Extension, Shelf		Appelez-nous	-
38	WP3177991		Screw (8)   (Replaces: 3177991)			Immediately	$ 7.55
39	3177865		Insulation, Wrap		Appelez-nous	-
39	3177870		Insulation, Back		Appelez-nous	-
39	4168203		Cover, Cap Tube		Appelez-nous	-
39	4159445		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
