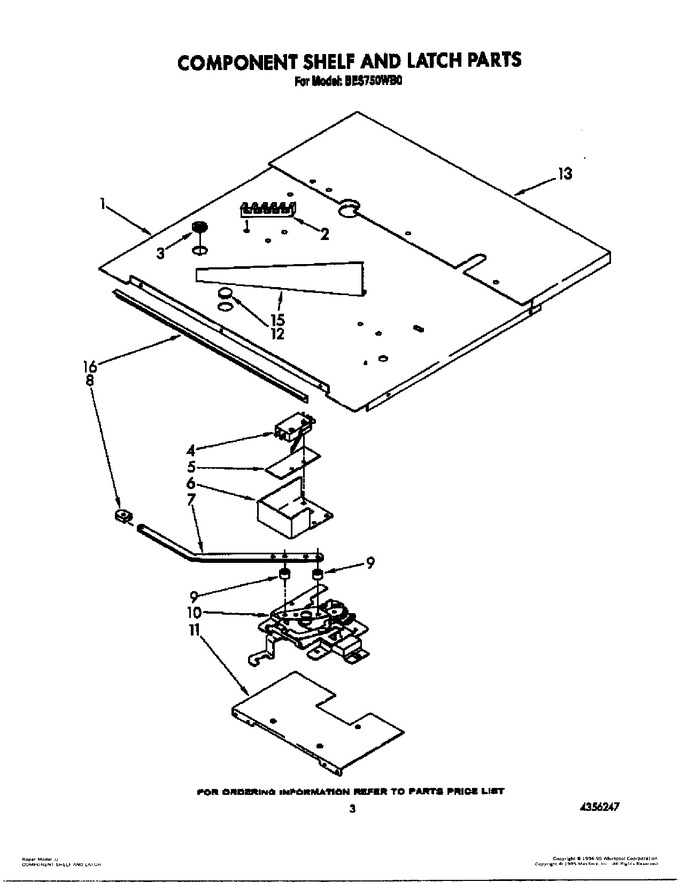

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3178089		Shelf, Component		Appelez-nous	-
1	WP90767		Screw (7)   (Replaces: 300890)			Immediately	$ 8.25
2	W10841059		Screw (2)   (Replaces: 98445)		Appelez-nous	-
2	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 30.13
3	4159035		Bushing		Appelez-nous	-
4	98106		Screw (2)		Appelez-nous	-
4	3178670		Switch, Latch		Appelez-nous	-
5	3178185		Insulator, Switch		Appelez-nous	-
6	254225		Screw (2)		Appelez-nous	-
6	WP3177991		Screw (1)   (Replaces: 3177991)			Immediately	$ 7.55
6	3177662		Guard, Latch		Appelez-nous	-
7	3177969		Handle, Latch		Appelez-nous	-
7	3179950		Screw (2)		Appelez-nous	-
7	4159187		Screw (2)		Appelez-nous	-
8	WP488234		Screw   (Replaces: 4159334)				$ 7.08
8	311253		Knob, Latch Handle		Appelez-nous	-
9	3177986		Spacer, Handle		Appelez-nous	-
10	3178410		Latch, Mechanism		Appelez-nous	-
10	WP3177991		Screw (3)   (Replaces: 3177991)			Immediately	$ 7.55
11	3177496		Plate, Mounting		Appelez-nous	-
12	3179777		Plug, Button		Appelez-nous	-
13	WP3177991		Screw (8)   (Replaces: 3177991)			Immediately	$ 7.55
13	3178132		Extension, Shelf		Appelez-nous	-
15	3180693		Baffle, Air		Appelez-nous	-
15	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 7.55
16	WP3177991		Screw (3)   (Replaces: 3177991)			Immediately	$ 7.55
16	3180689		Shield, Heat		Appelez-nous	-
