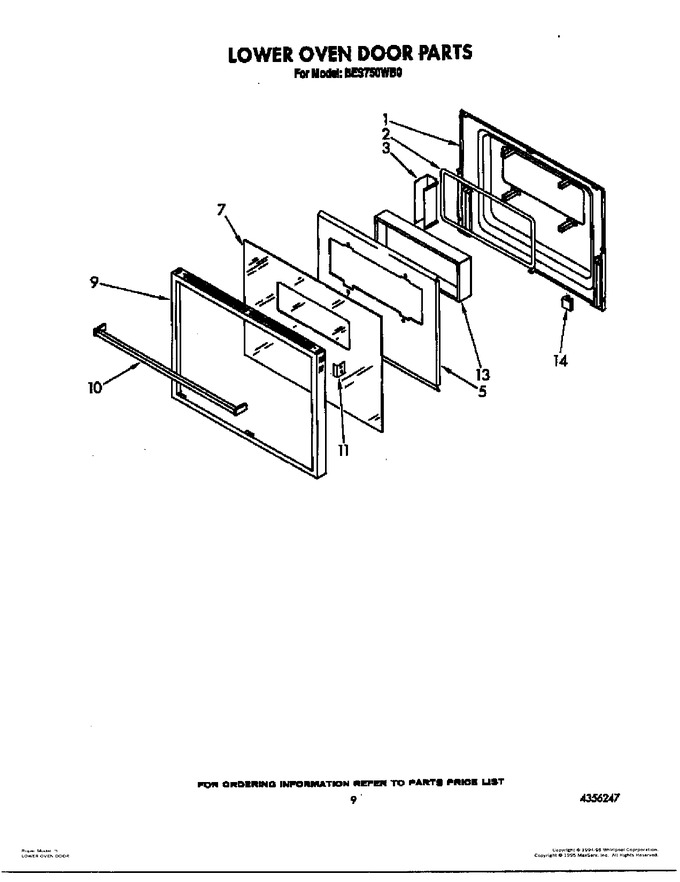

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3177600 | Liner, Door |
|
- | |||||
| 1 | 4168863 | Screw (6) |
|
- | |||||
| 1 | 3178001 | Screw (2) |
|
- | |||||
| 2 | 3178584 | Gasket, Window |
|
- | |||||
| 3 | 3179693 | Spacer, Window |
|
- | |||||
| 5 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 5 | 3177718 | Insulation, Retainer |
|
- | |||||
| 7 | 3180638 | Glass, Door |
|
- | |||||
| 7 | 310706 | Clip, Glass (16) |
|
- | |||||
| 9 | 3180636 | Frame, Door |
|
- | |||||
| 10 | 3180655 | Handle, Door |
|
- | |||||
| 10 | 3181924 | Screw (2) |
|
- | |||||
| 11 | 3181850 | Clip (2) |
|
- | |||||
| 13 | 4164235 | Window Package |
|
- | |||||
| 14 | 3181723 | Bumper, Door Glass |
|
- |
