Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3181193 Wiring Harness (latch) Appelez-nous -
3 3180618 Wiring Harness (lower Oven) Appelez-nous -
4 3180619 Wiring Harness (upper Oven) Appelez-nous -
5 3179668 Standoff, Wire Appelez-nous -
5 WP90767 Screw (4)   (Replaces: 300890) In-Stock Immediately $ 8.25

6 WP308605 Clamp, Wire   (Replaces: 3179669) Special Order $ 11.76

7 7111P002-60 Clamp, Wire   (Replaces: 4159037) Appelez-nous -
7 WP112432 Nut, Hex (3)   (Replaces: 112432) Special Order $ 8.63

8 W10113937 Clip, Ground   (Replaces: 357572) Special Order $ 11.37

8 309133 Screw (4) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

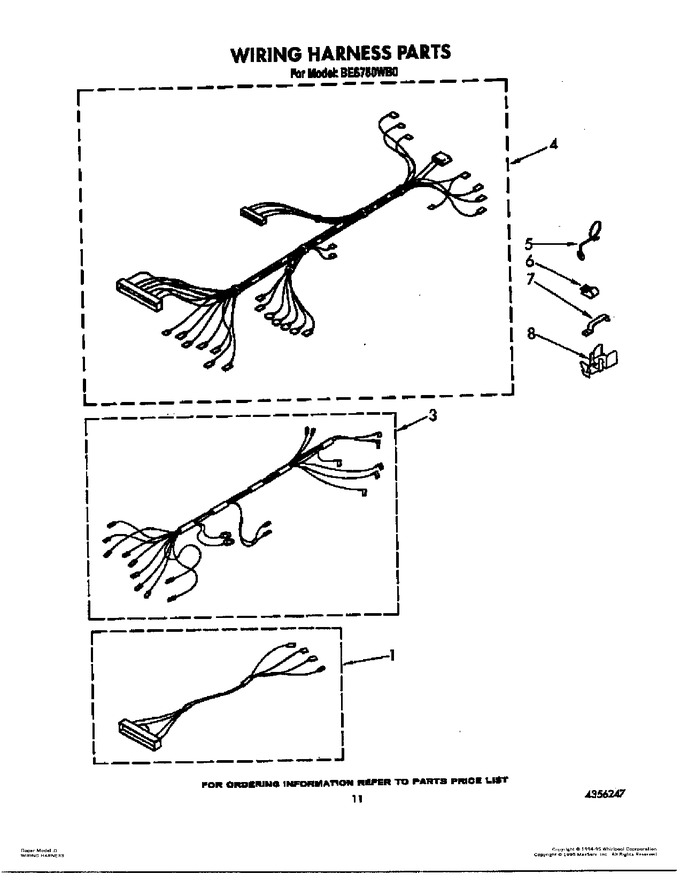

Diagram for BES750WB0
