SELECT A DIAGRAM

02 - Oven


03 - Control Panel


04 - Burner


05 - Door And Drawer, Lit/optional

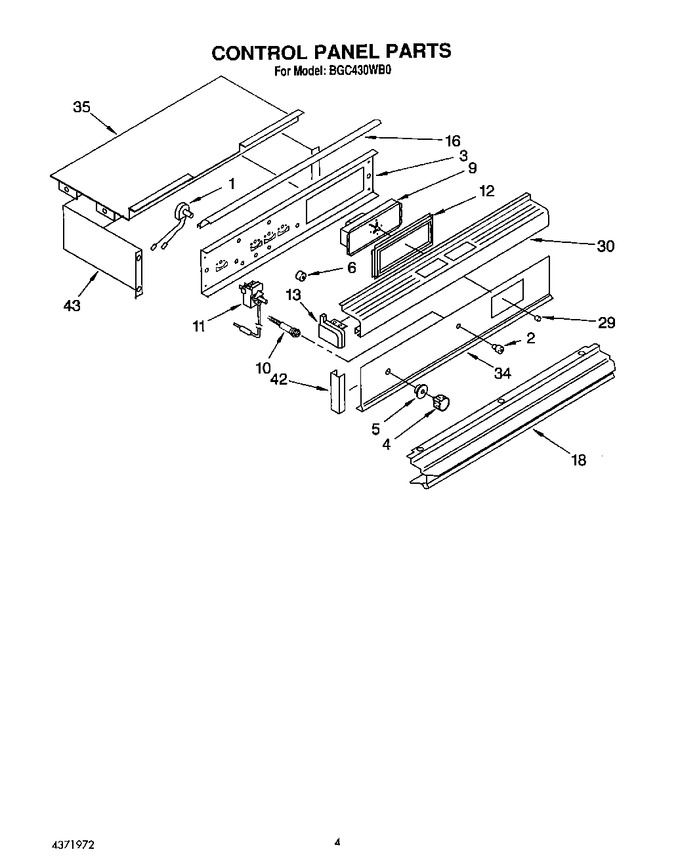

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	816963		Switch, Oven Light		Appelez-nous	-
2	816332		Bezel, Switch		Appelez-nous	-
3	816959		Plate, Instrument Mtg.		Appelez-nous	-
3	241428		Screw, No.10x24x1/2 (4)		Appelez-nous	-
4	816952		Knob, Thermostat		Appelez-nous	-
5	816962		Spacer, Dial			Immediately	$ 22.90
6	816961		Bumper, Rubber (4)		Appelez-nous	-
9	816956		Clock		Appelez-nous	-
10	816958		Light, Indicator		Appelez-nous	-
11	4371969		Thermostat		Appelez-nous	-
12	816955		Bracket, Timer		Appelez-nous	-
13	816830		End Cap (left Side)		Appelez-nous	-
13	816829		End Cap (right Side)		Appelez-nous	-
16	487010		Screw, No.6x18x1/4 (3)		Appelez-nous	-
16	816850		Deflector, Heat		Appelez-nous	-
18	816325		Screw, No.6x32x1/2 (4)		Appelez-nous	-
18	816944		Trim, Center Vent		Appelez-nous	-
29	816951		Knob, Clock		Appelez-nous	-
30	816983		Trim, Top		Appelez-nous	-
30	816325		Screw, No.6x32x1/2 (6)		Appelez-nous	-
34	816946		Panel, Control		Appelez-nous	-
35	816931		Cover, Control		Appelez-nous	-
42	816898		Trim, Control Panel (2)		Appelez-nous	-
43	313823		Screw, No.8x22x5/16 (8)		Appelez-nous	-
43	816957		Shield, Controls		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
